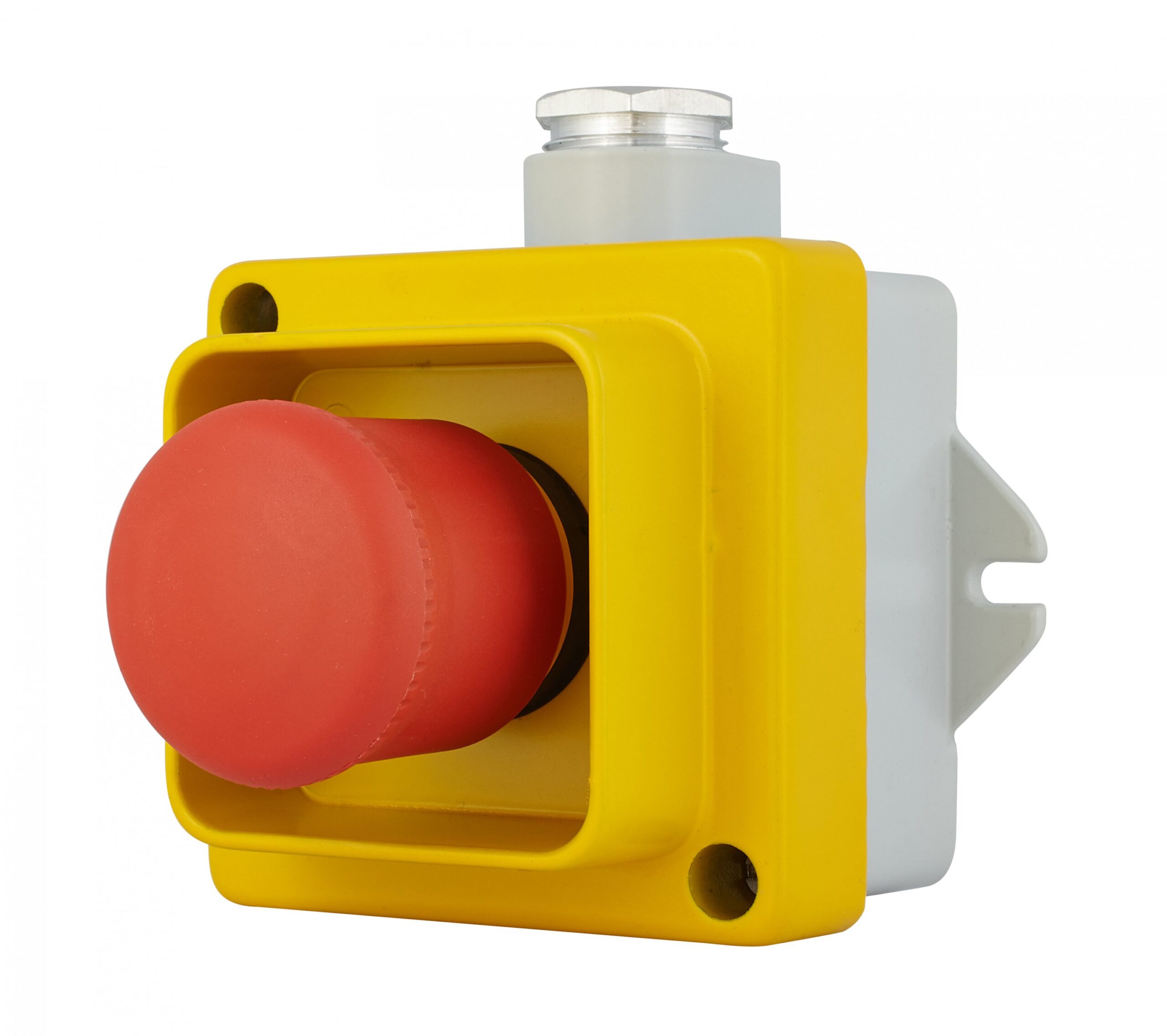

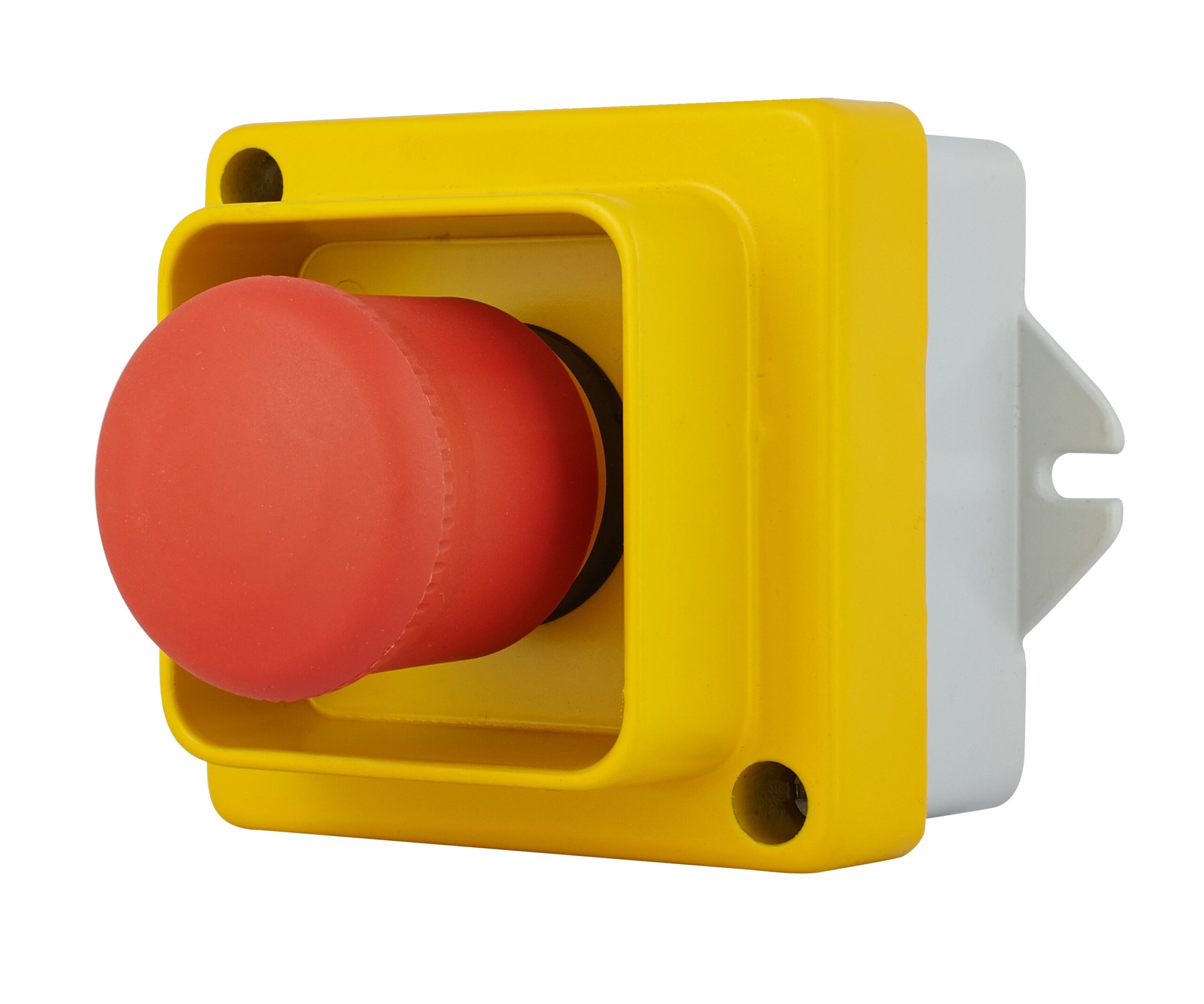

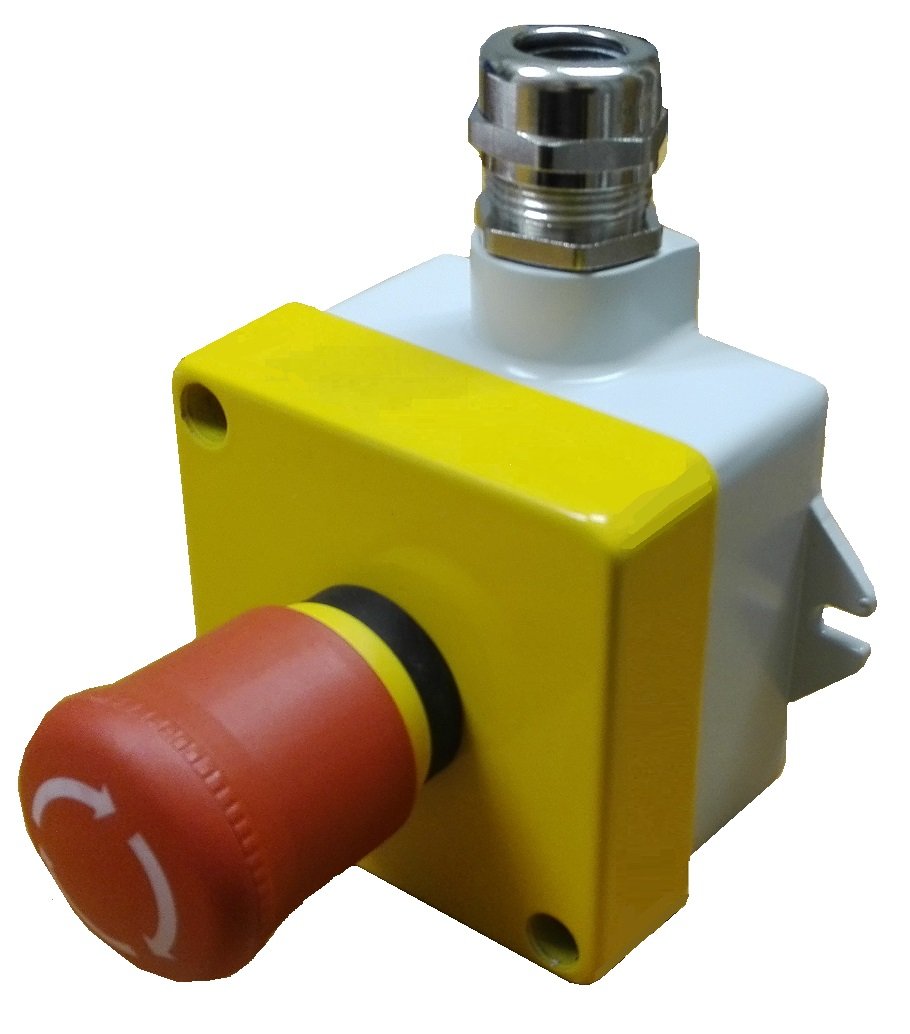

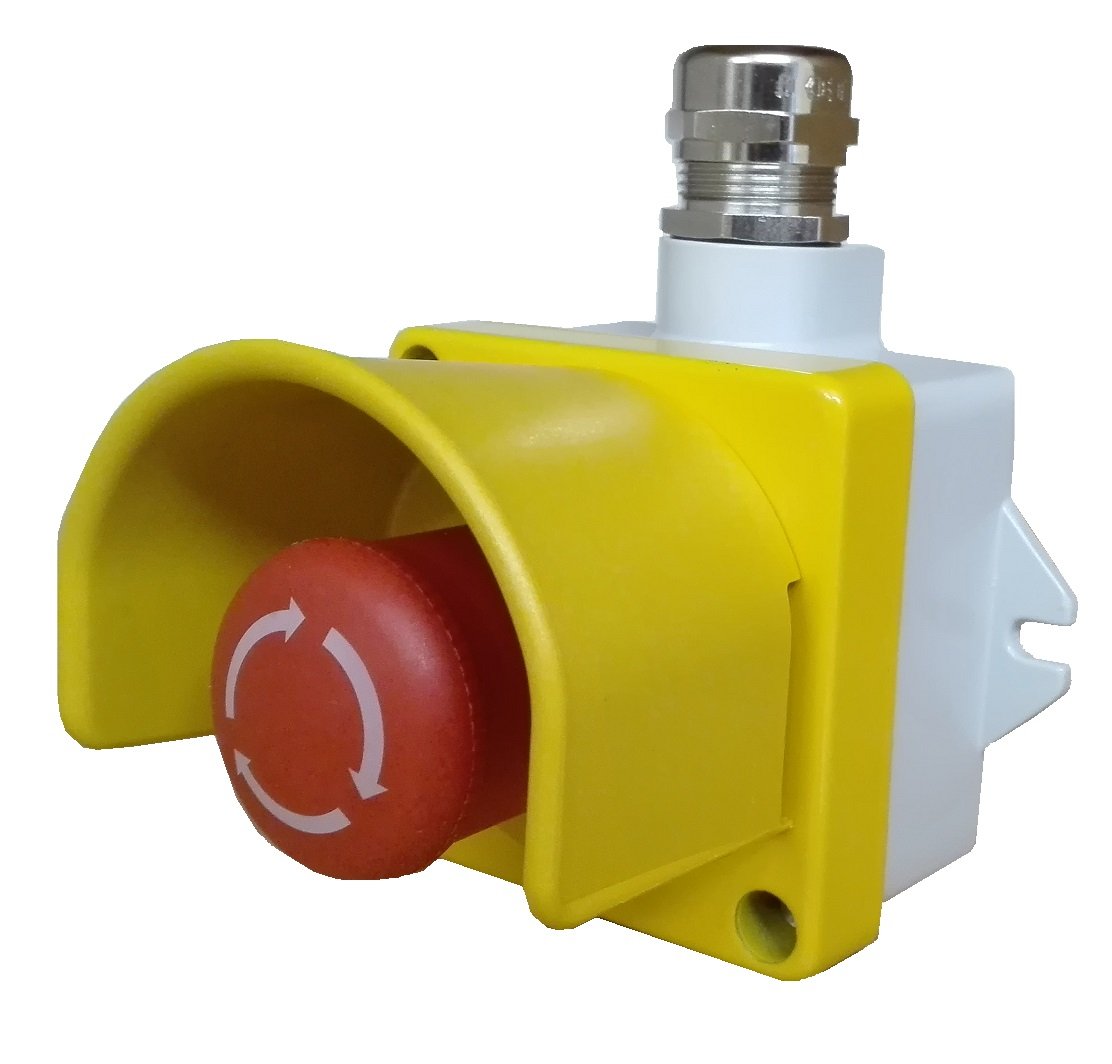

Emergency /stop push-button with frame IP67
– 2 NO, 2NC, NO+NC
– Max three connections, 1 more can be added, NO or NC (e.g. 2NC+NO)
– Pull release, key release possible. Button also has B10 (IEC 62061) and B10d (ISO 13849) approval.

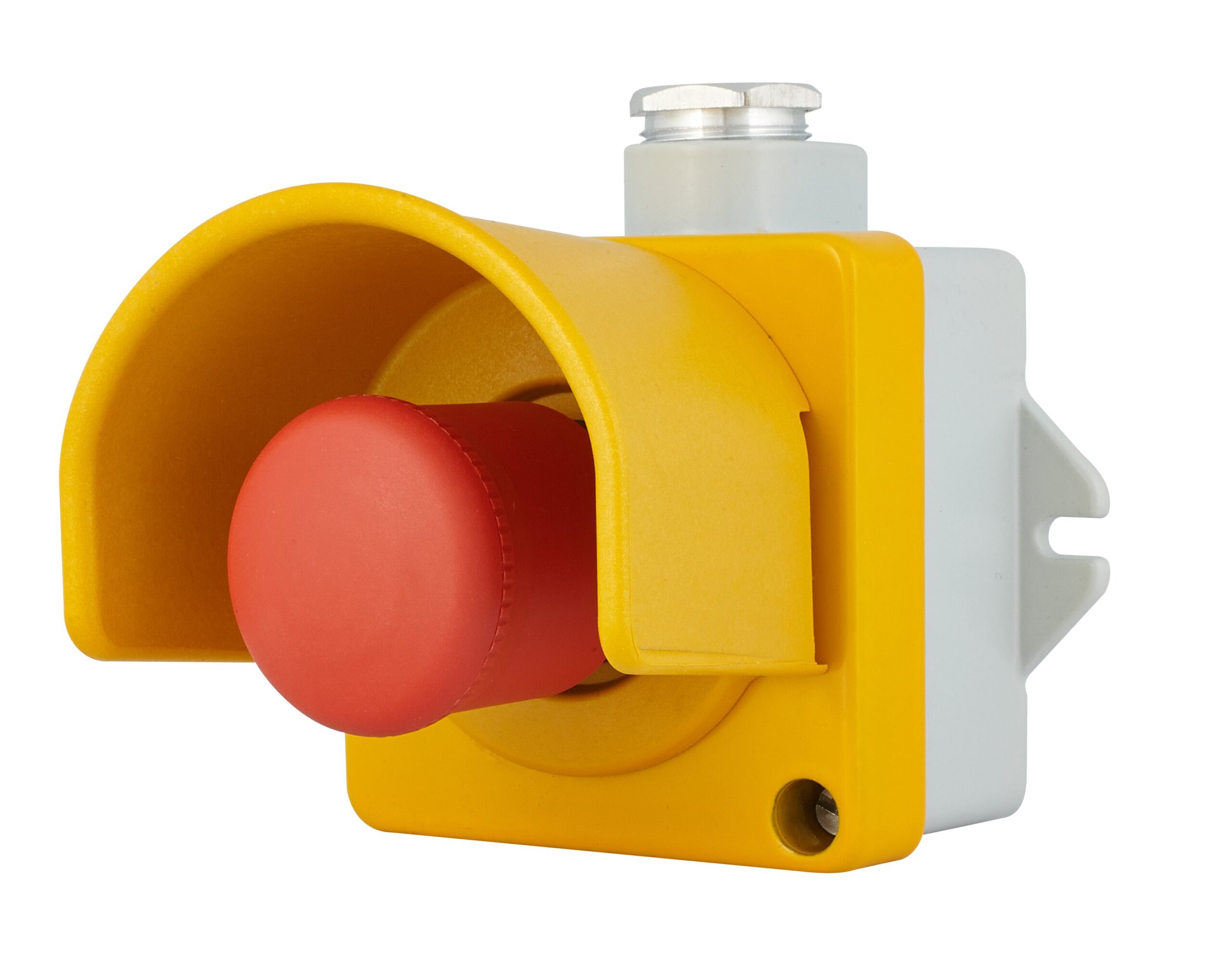

– With shield frame, 23 100 55 – 57
– Also with illuminated push-button, AC or DC, LED-light
– 115-500 VAC
– 24-220 VDC
– Cover RAL1021, Box RAL7035
– Box IK08
Box also in other RAL colors
Through alternatives:
– Solid (machining gland on the side or bottom), can be equipped with membrane seal, IP44
– 1 pcs PG16, IP67, Multipart seal: 7,5-10-12,5-15
SFS-EN 13850, IEC 60947-5-5
9723108XXX
Em.stop: 90mmØ button, size: 100x100x130 (w*l*h), NO+NC/2NC/2NO,
IP65, Box aluminum IK09, chromatated and painted.

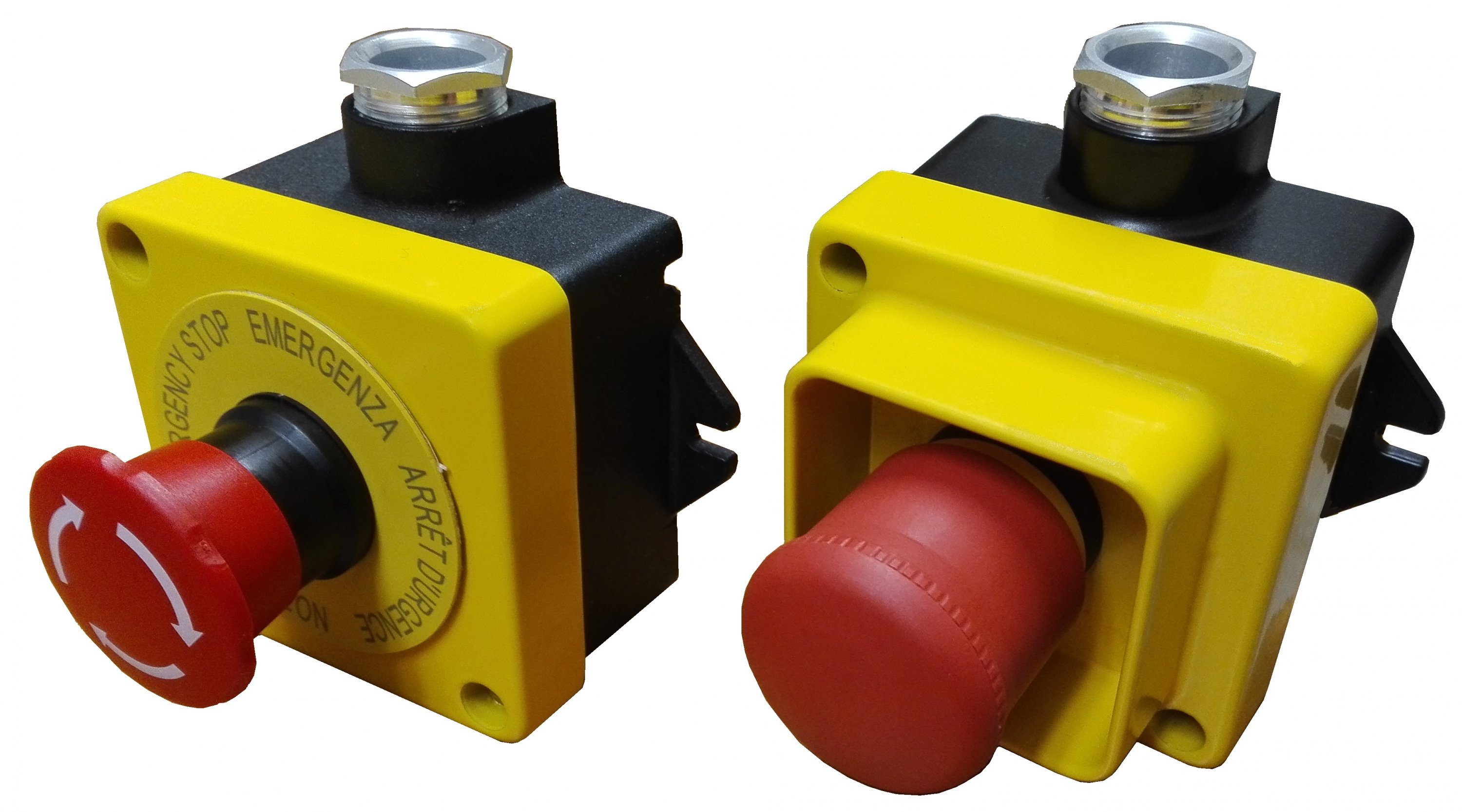

Box also available as black.
