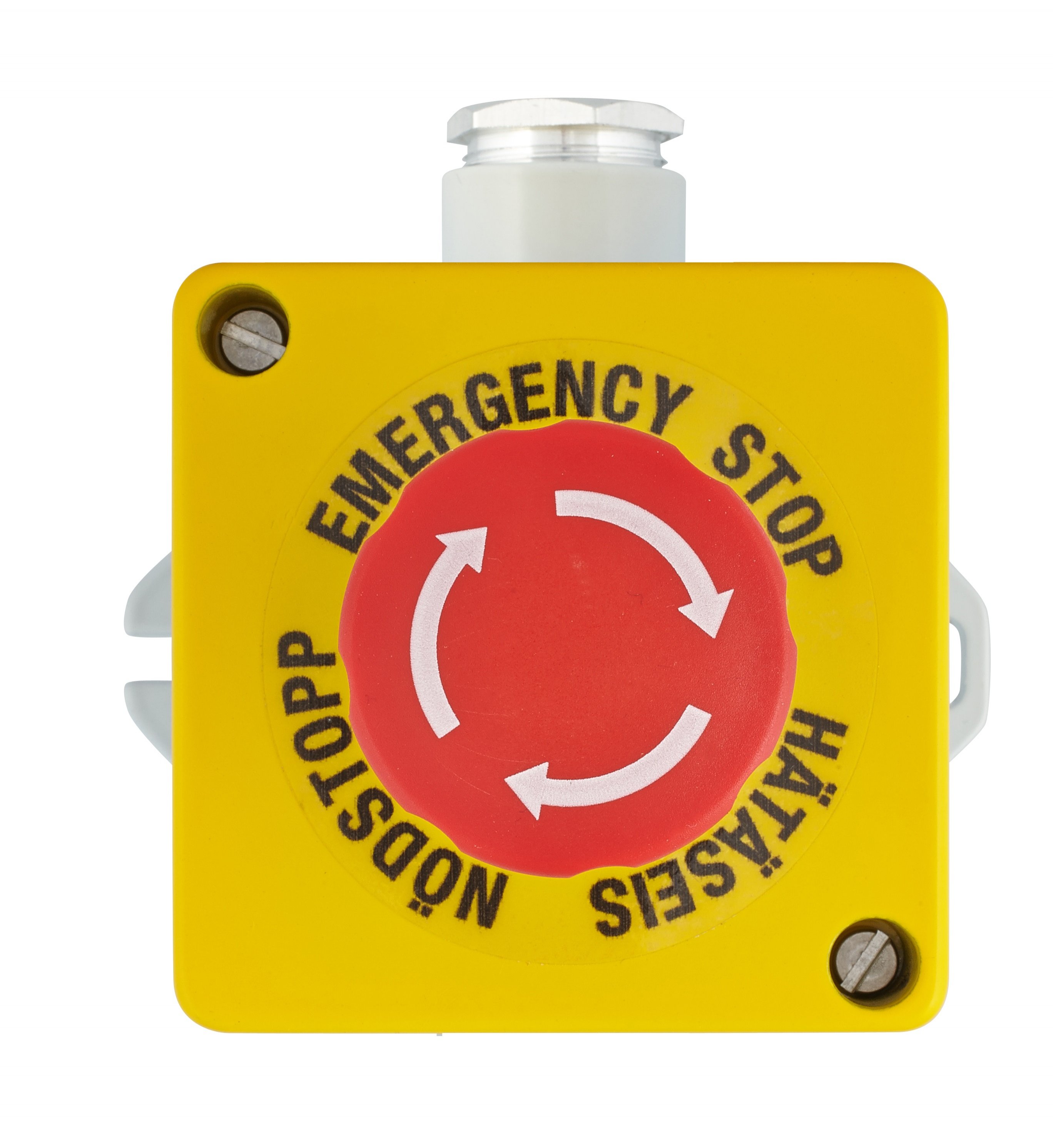

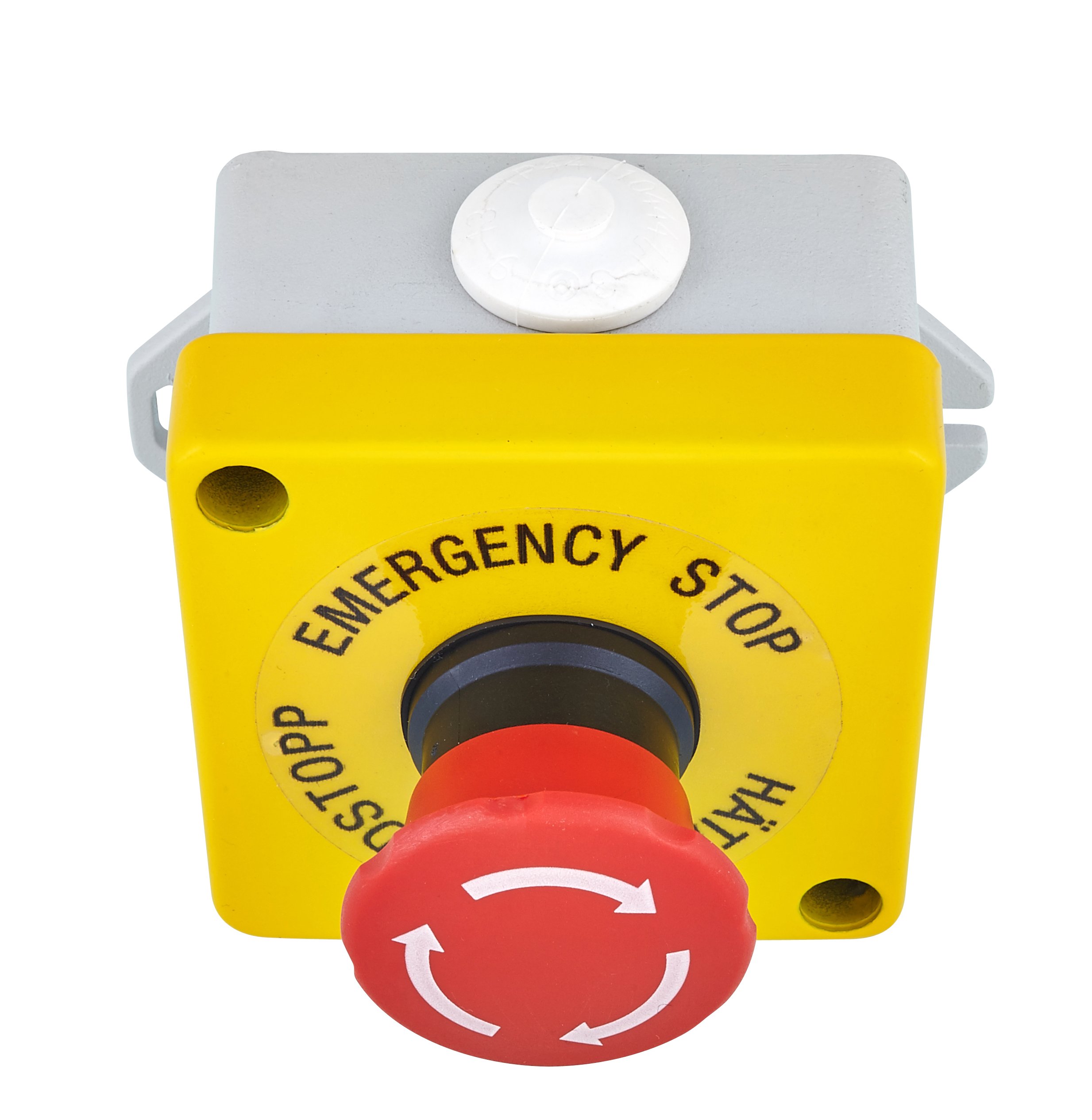

EMERGENCY/STOP PUSH-BUTTON IP67 240VAC

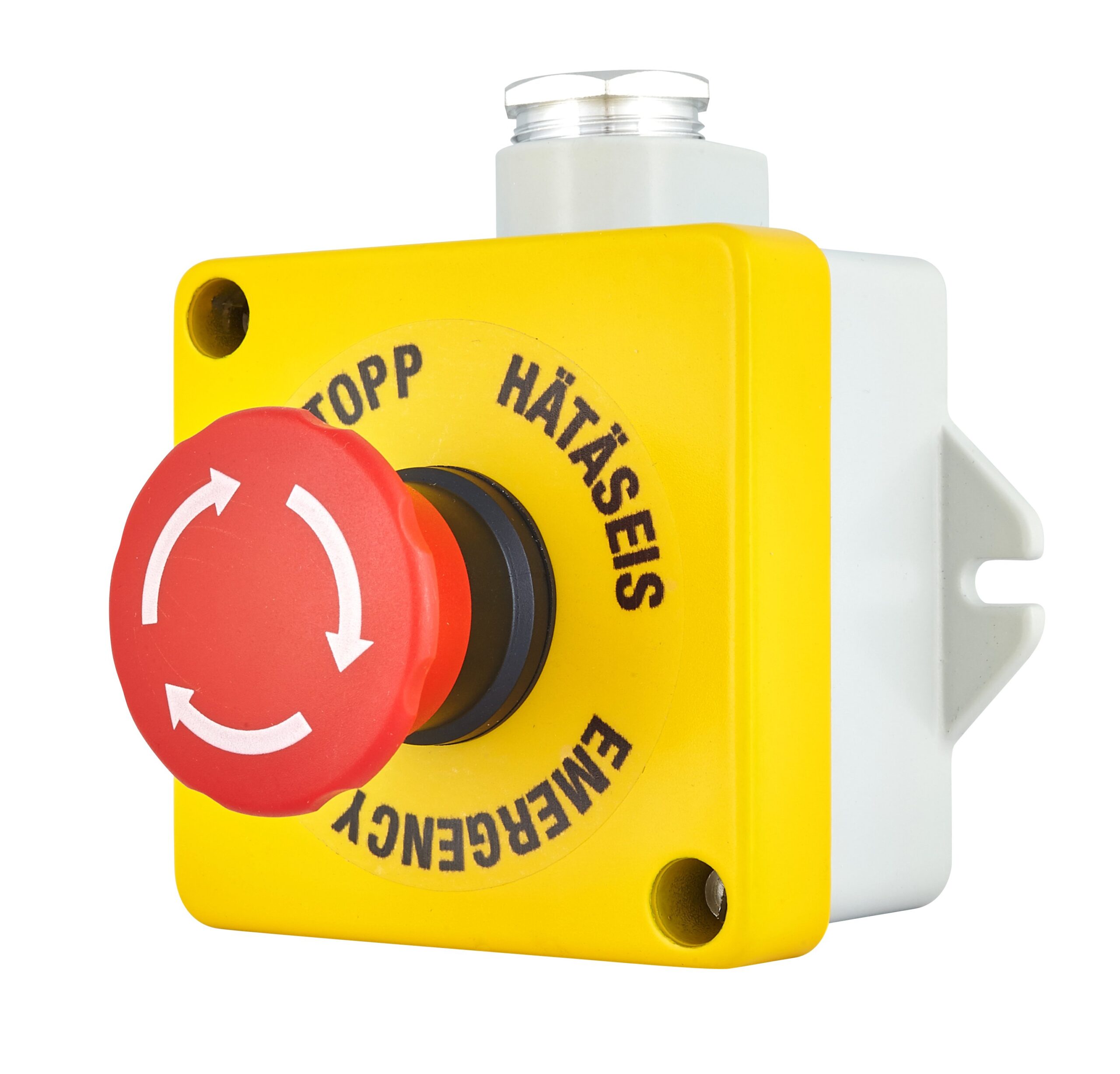

Emergency /stop push-button IP44 or IP67 with text shield

– 2 NO, 2NC, NO+NC

– Turn release, key release possible

– 240-300 VAC

– 24-125 VDC

– Cover RAL1021, Box RAL7035

– SIL-certificate for the push-button

– Box IK08

Box also in other RAL colors

Datasheet, productlist

Through alternatives:

– Solid equipped with 2 x membrane seal (9-13), IP44. Instlled by customers needs, bottom/side.

– 1 pcs PG16, IP67, Multipart seal: 7,5-10-12,5-15

SFS-EN 13850, IEC 60947-5-5

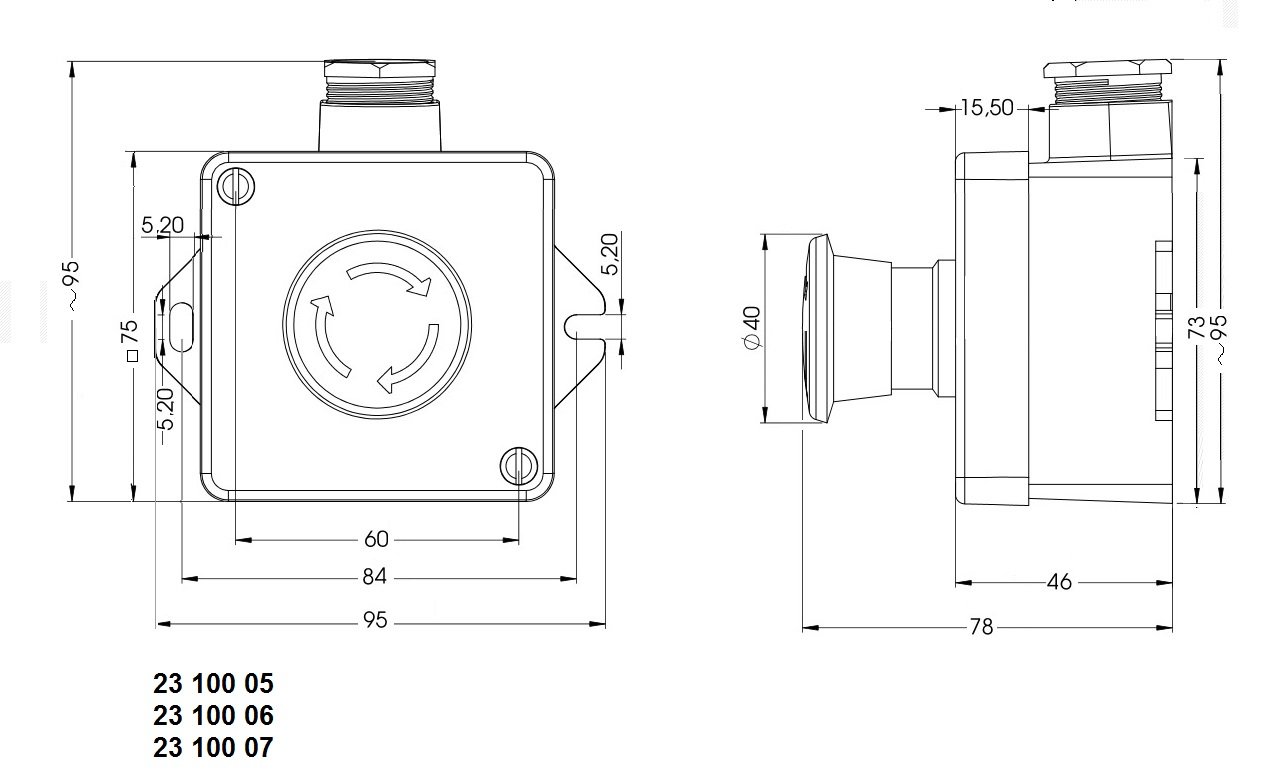

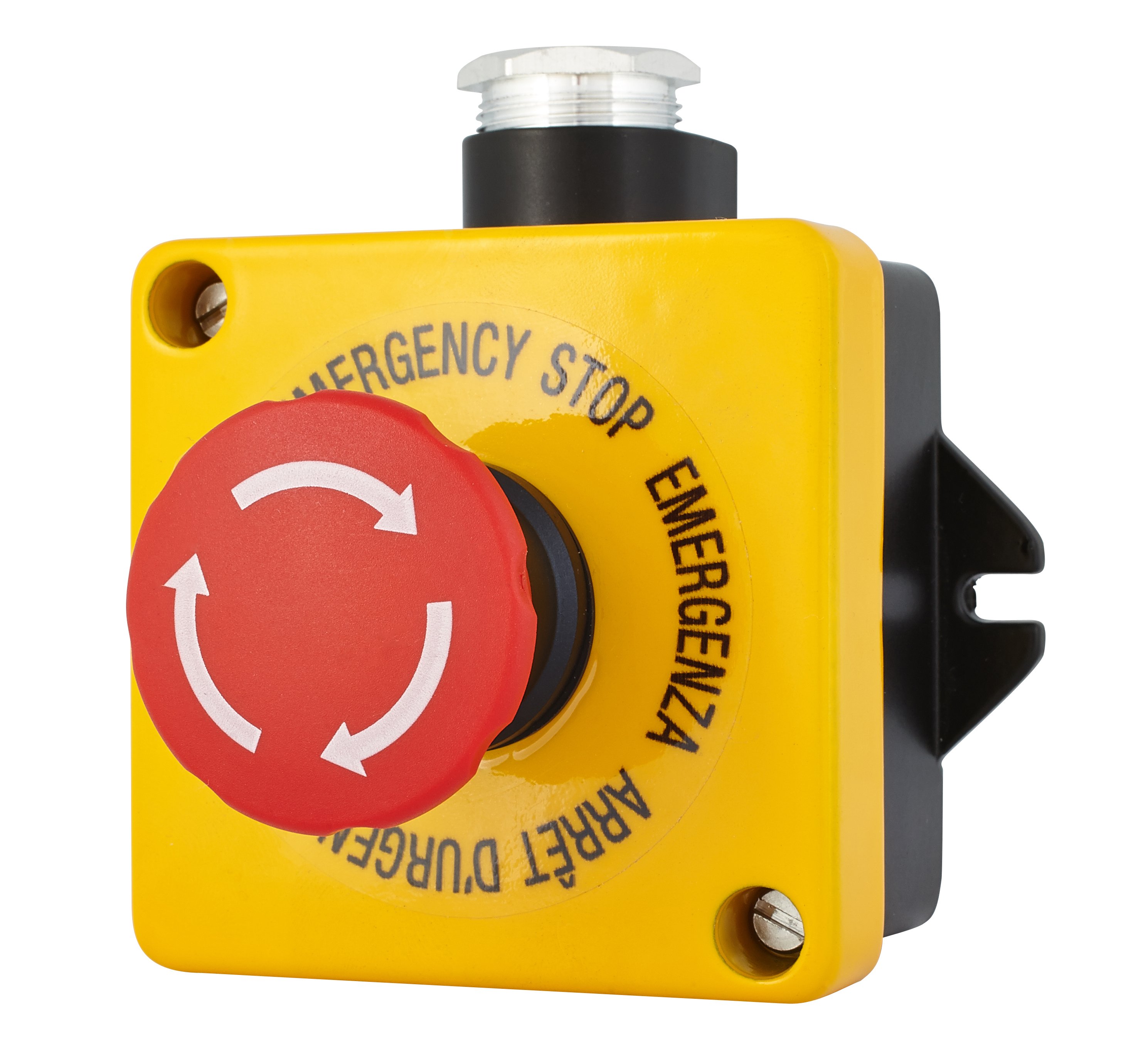

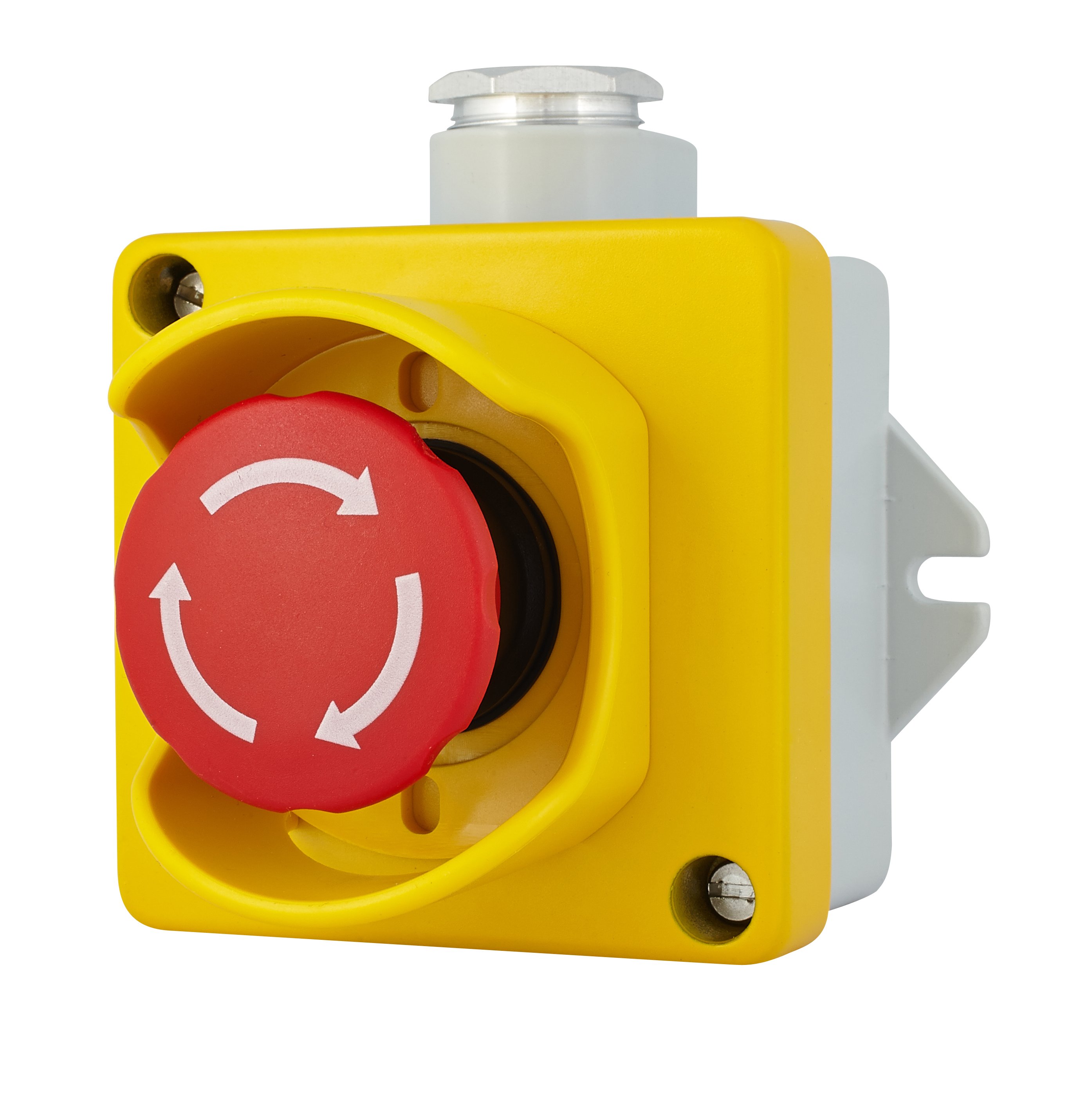

Box also available as black.	23 100 25 – 27

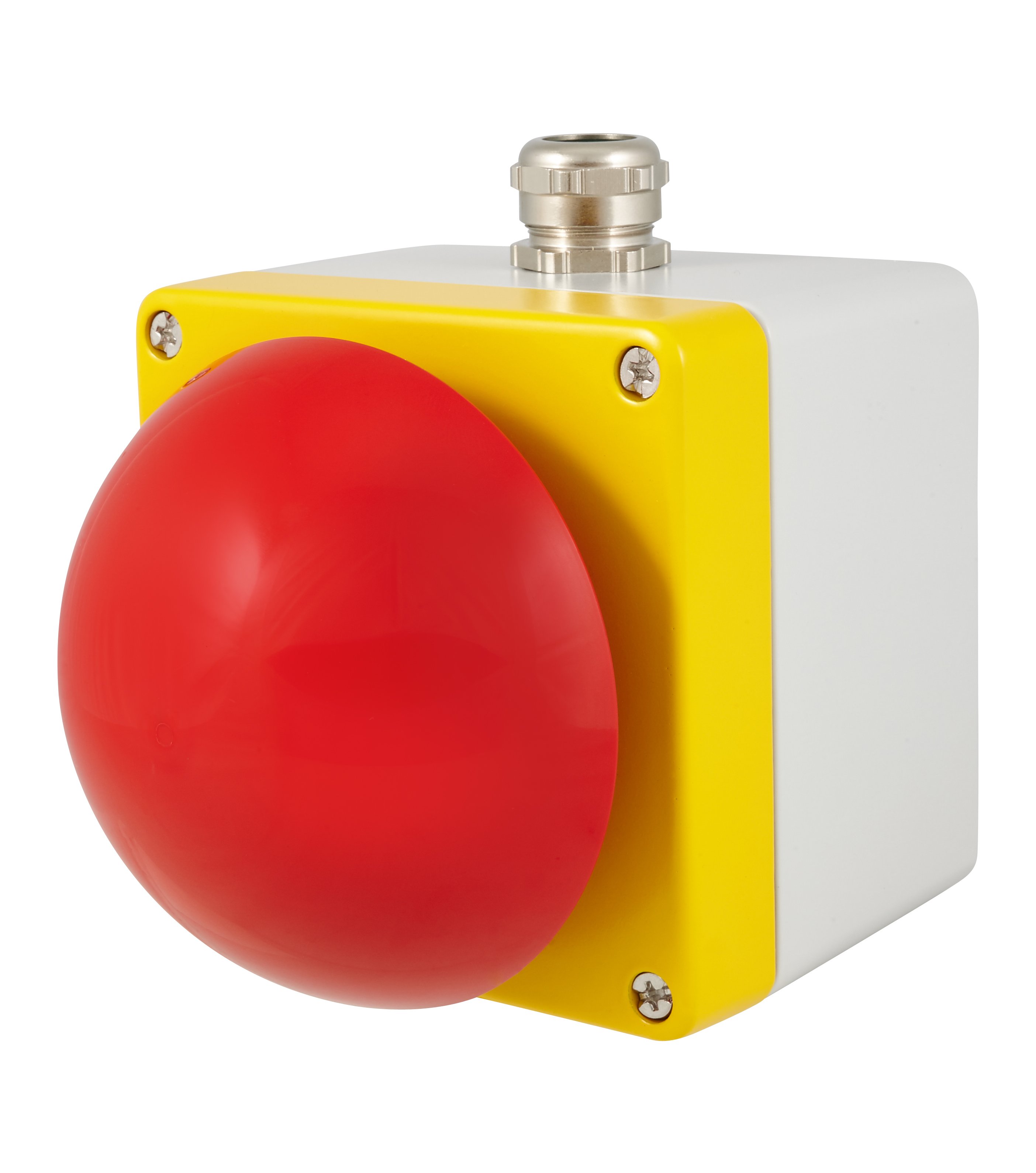

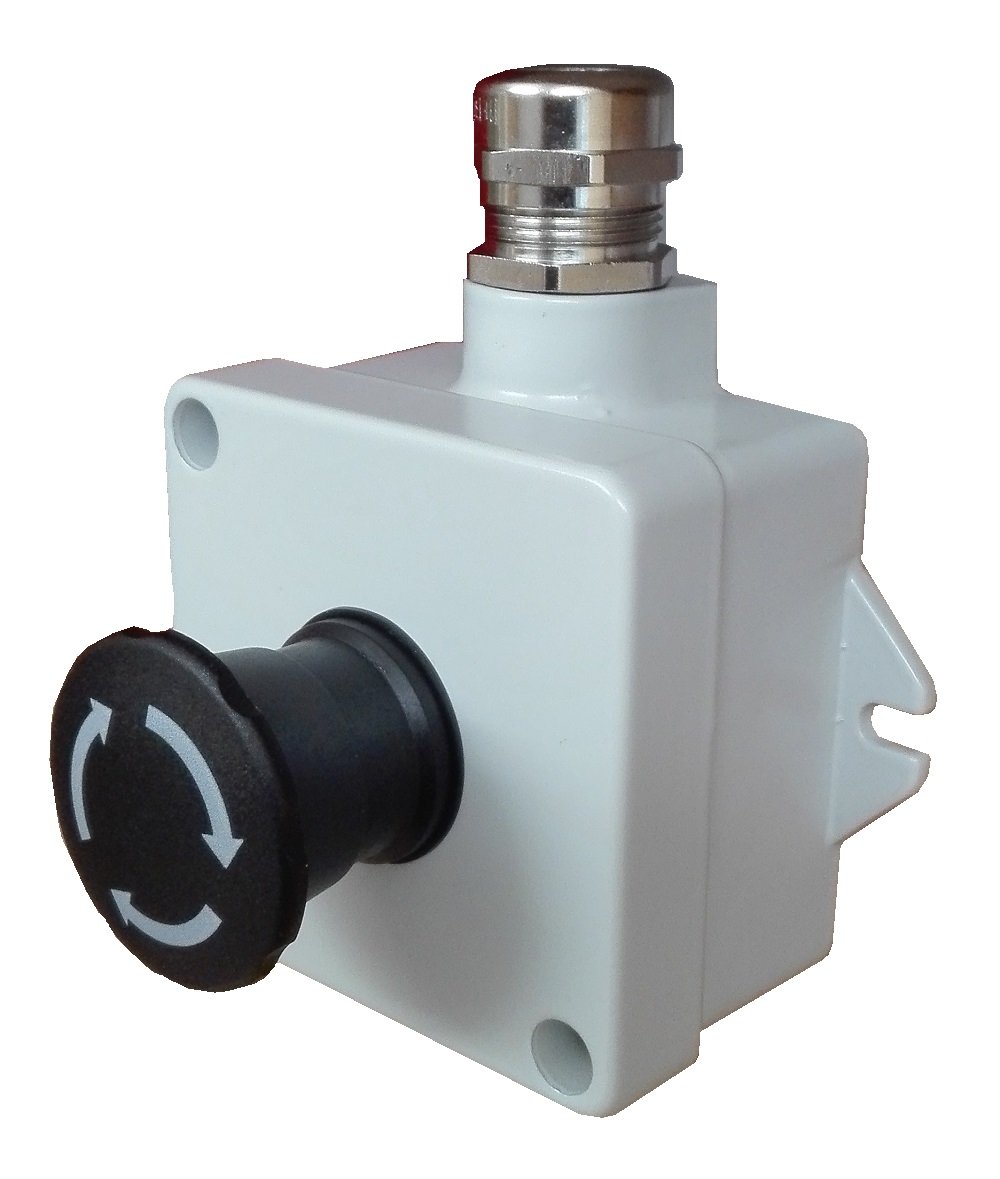

Machine stop, 972045411STMS Datasheet

9723108XXX

Em.stop: 90mmØ button, size: 100x100x130 (w*l*h), NO+NC/2NC/2NO,

IP65, Box aluminum IK09, chromatated and painted.
