HEAVY DUTY PUSHBUTTON IP68, WATERPROOF

Description

Heavy Duty Pushbutton for very demanding installation areas, 240V/1A, IP67/68/69K. Designed for rough environment, good protection against vandalism, dust, weather, water and corrosion.

Good protection also against oil. Suitable for industry halls, cleaning room e.g.

Black pushbutton, NO+NC as standard. Red or Green available, also 2NO or NC with different colors.

Box IK08, aluminium, in built shield frame. Color UV and corrosion protection.

Box also available in other colors!

240V/1A & 24V/0,3A, 24-125 VDC, 120 VAC 1.5A America

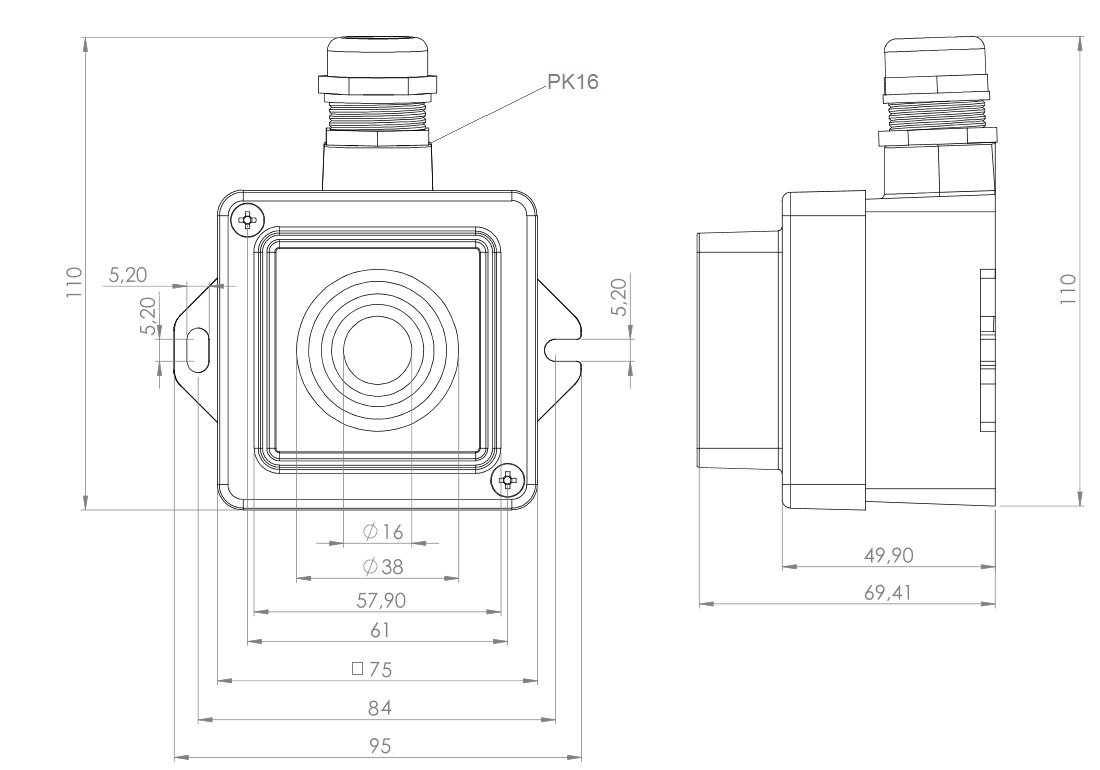

75x75x70 (size)

IEC/EN 60947-1, IEC 60947-5-1

2310000.05.Technichal

Available Options

Color	Model	Order no	Marine model	Switch	Voltage	Cable Ø mm	Description	Weight	Quantity
RAL-7035	Heavy Duty IP68	2045430	Yes	NO+NC	240V/1A	10-14	IP67/68/69K	N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity
RAL-7035	Heavy Duty IP68	2045431	Yes	NO+NC	240V/1A	10-14		N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity
RAL-7035	Heavy Duty IP68	2045432	Yes	NO+NC	240V/1A	10-14		N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity
RAL-7035	Heavy Duty IP68	2045433	Yes	2NC	240V/1A	10-14		N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity
RAL-7035	Heavy Duty IP68	2045434	Yes	2NC	240V/1A	10-14		N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity
RAL-7035	Heavy Duty IP68	2045435	Yes	2NC	240V/1A	10-14		N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity
RAL-7035	Heavy Duty IP68	2045436	Yes	2NO	240V/1A	10-14		N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity
RAL-7035	Heavy Duty IP68	2045437	Yes	2NO	240V/1A	10-14		N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity
RAL-7035	Heavy Duty IP68	2045438	Yes	2NO	240V/1A	10-14		N/A	HEAVY DUTY PUSHBUTTON IP68, WATERPROOF quantity

3D/CAD files available on request. Contact us at
