JUNCTION BOX 16 or 25mm² 690V IP44

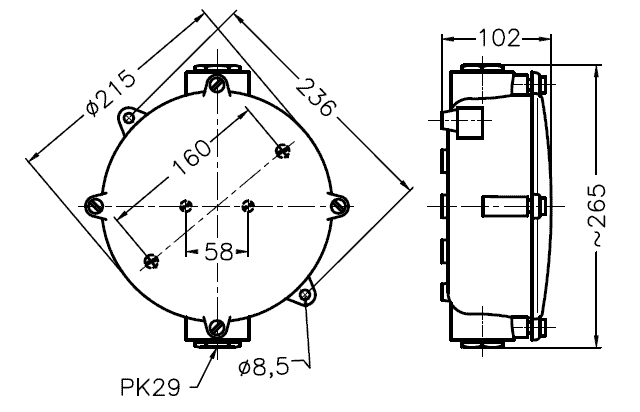

Round boxes, internal Ø 200 mm. Delivered without surface treatment and without terminals. The boxes come ready with screws for the terminals, screw spacing 58 mm. Aluminium cable gland seals PG 29 or PG 36 (cable Ø 28mm or 35mm).

Available Options

ModelFasteningOrder noDescriptionWeightQuantity
1606 / 41623864PG 292 kg
1606 / 61623866PG 292 kg
1607 / 41623884PG 362 kg
1607 / 61623886PG 362 kg

3D/CAD files available on request. Contact us at
