Home » Products » Luminaires » LED-4700 3,1W & 6,3W IP67

LED-4700 3,1W & 6,3W IP67

Thanks to its extremely robust construction, the luminaire is suitable for use in wet industrial environments, on ships, in cranes, and in locations where there is a high risk of breakage. The opal diffuser is made of impact‑resistant polycarbonate and is secured to the housing with a frame using four screws.

The luminaire meets the highest requirements for UV protection and corrosion resistance. All products are equipped with acid‑resistant cover screws and oil‑resistant gaskets.

Datsheet LED-4700 , technical information (English)

Available Options

ColorModelOrder noMarine modelVoltageFrequencyPower WLumenDescriptionWeightQuantity
RAL-703547004307156Yes220-240V50-60 Hz6,3493OPAL0,7 kg
RAL-703547004307153Yes220-240V50-60 Hz3,1229OPAL0,7 kg
RAL-70354700-C/US97430715312USYes120V60 Hz3,1229OPAL0,7 kg
RAL-7035470097430715624DCYes24VDC6500OPAL0,7 kg
RAL-7035470097430715612DCYes12VDC3230OPAL0,7 kg
RAL-70354700 High Heat temp.974307156HTSTYes220-240V50-60 Hz6,3493OPAL0,9 kg
Brown47004307103Yes220-240V50-60 Hz3,1229OPAL0,7 kg
Brown47004307106Yes220-240V50-60 Hz6,3493OPAL0,7 kg
Brown4700-C/US97430710312USYes120V60 Hz3,1229OPAL0,7 kg
Brown470097430710624DCYes24VDC6500OPAL0,7 kg
Brown470097430710312DCYes12VDC3230OPAL0,7 kg

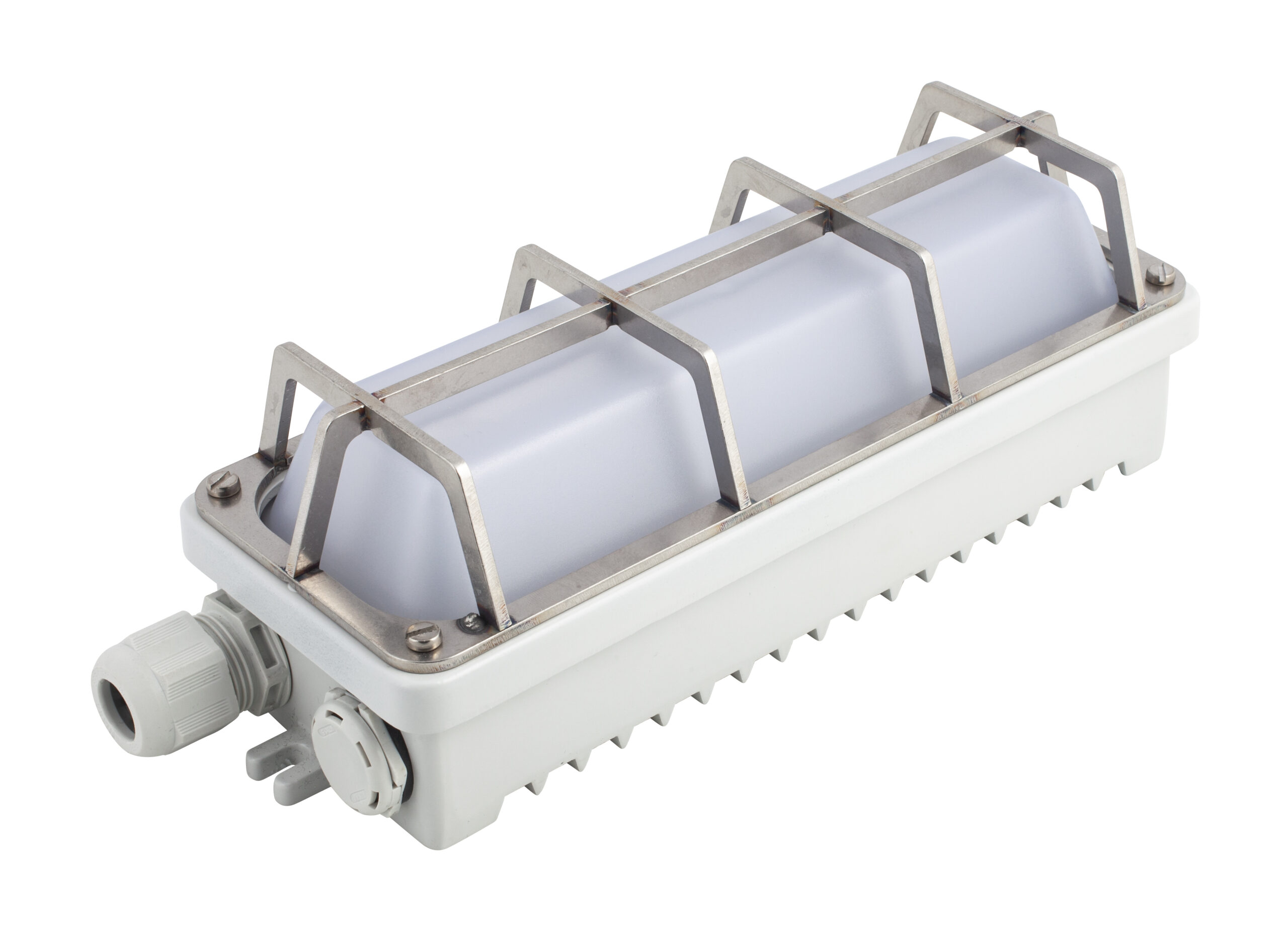

RAL-70354700-Shield frame4307193Yes120-240V50-60 Hz3,1229OPAL0,8 kg
RAL-70354700-Shield frame4307196Yes120-240V50-60 Hz6,3493OPAL0,8 kg

3D/CAD files available on request. Contact us at
