Pushbutons functions are NO (normally open)+NC (normally closed).
Metallic cable glands PG 16, cable Ø 11mm. Acid-resitantcover screws. Good suitable outside and in marine enviroment.
The RAL-7035 color series products meet the highest UV protection and corrosion requirements. All 7035 products are with acid-resistant cover screws and oil-resistant gaskets.
- NO+NC (normally open + normally closed) pushbutton, momentary (latching version available on special order)
- The pushbutton can also be wired as either NO or NC

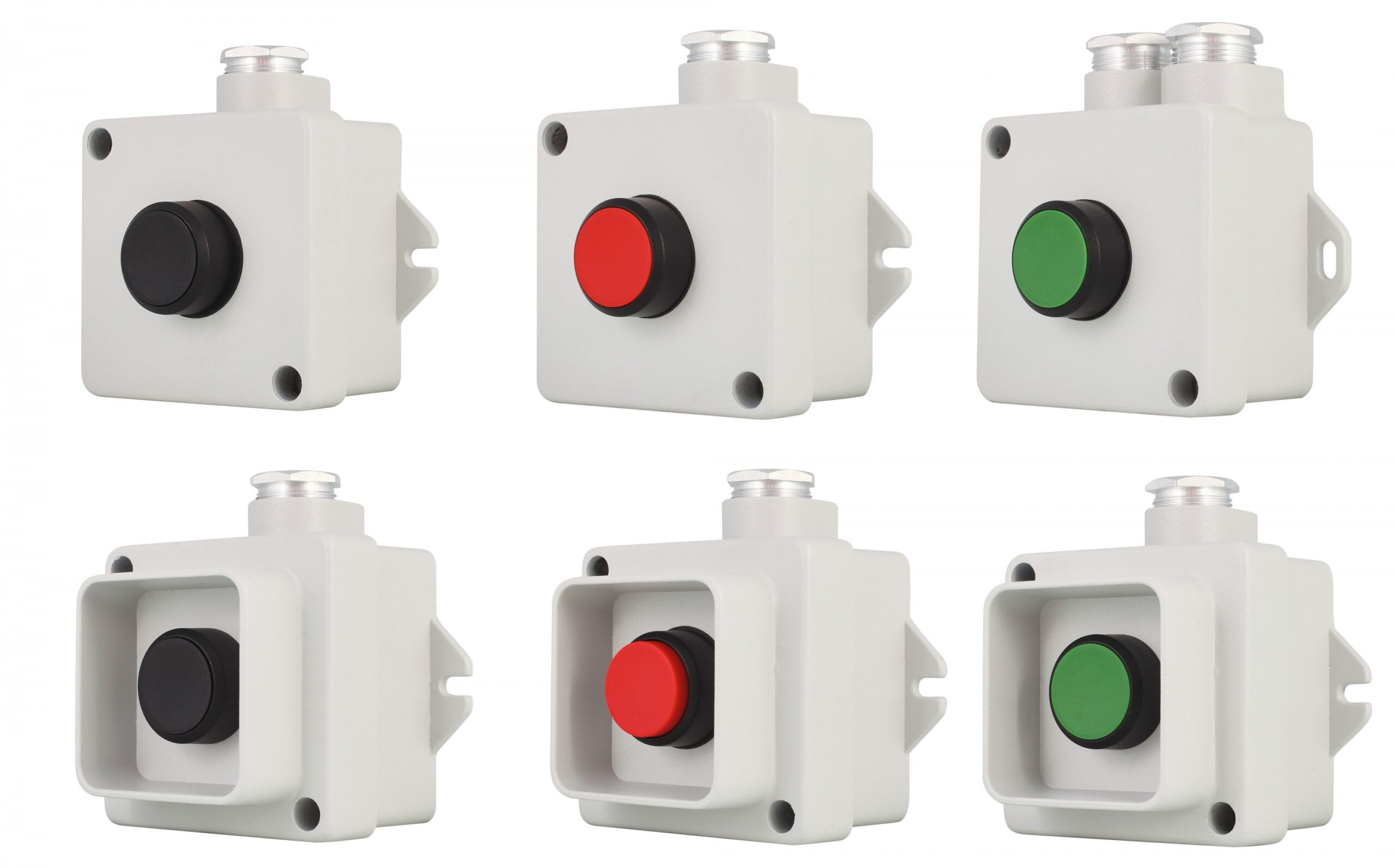

- Grey pushbutton as standard; specify if you want the button in red, green, or black
- 2NO / 2NC also available on special order
- 240V/1A & 24V/0.3A, 24–125 VDC, 120 VAC 1.5A (US)

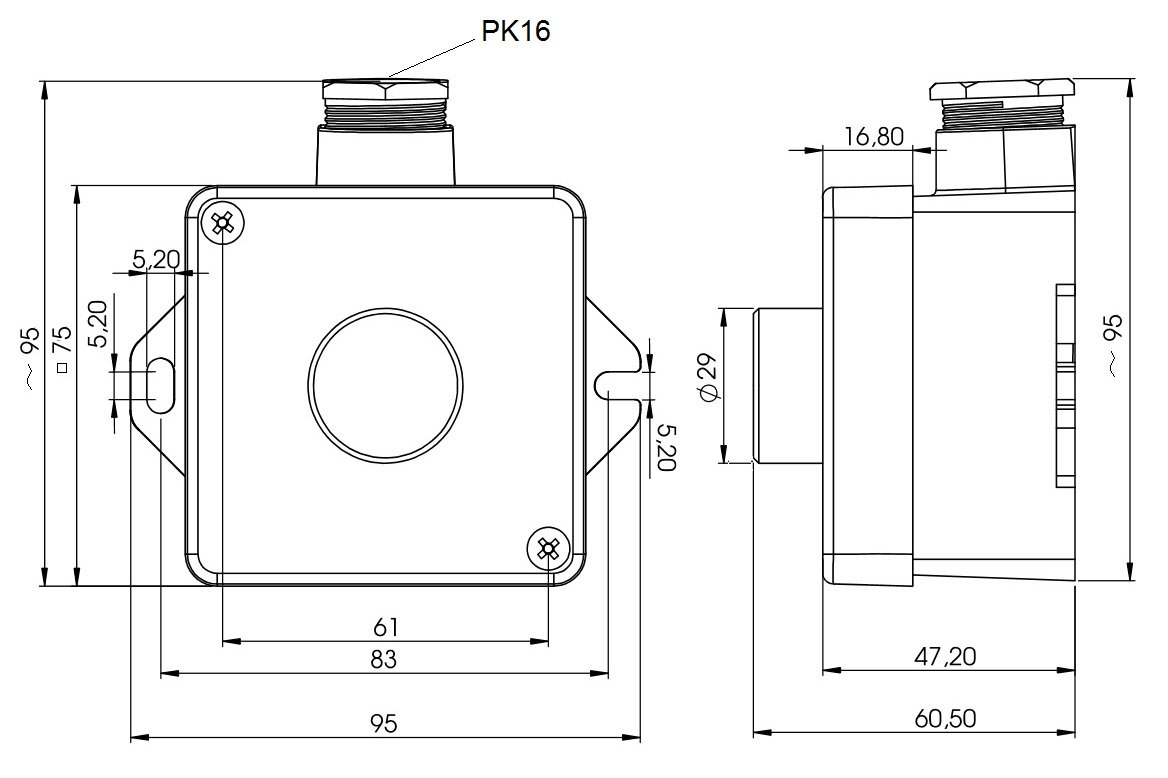

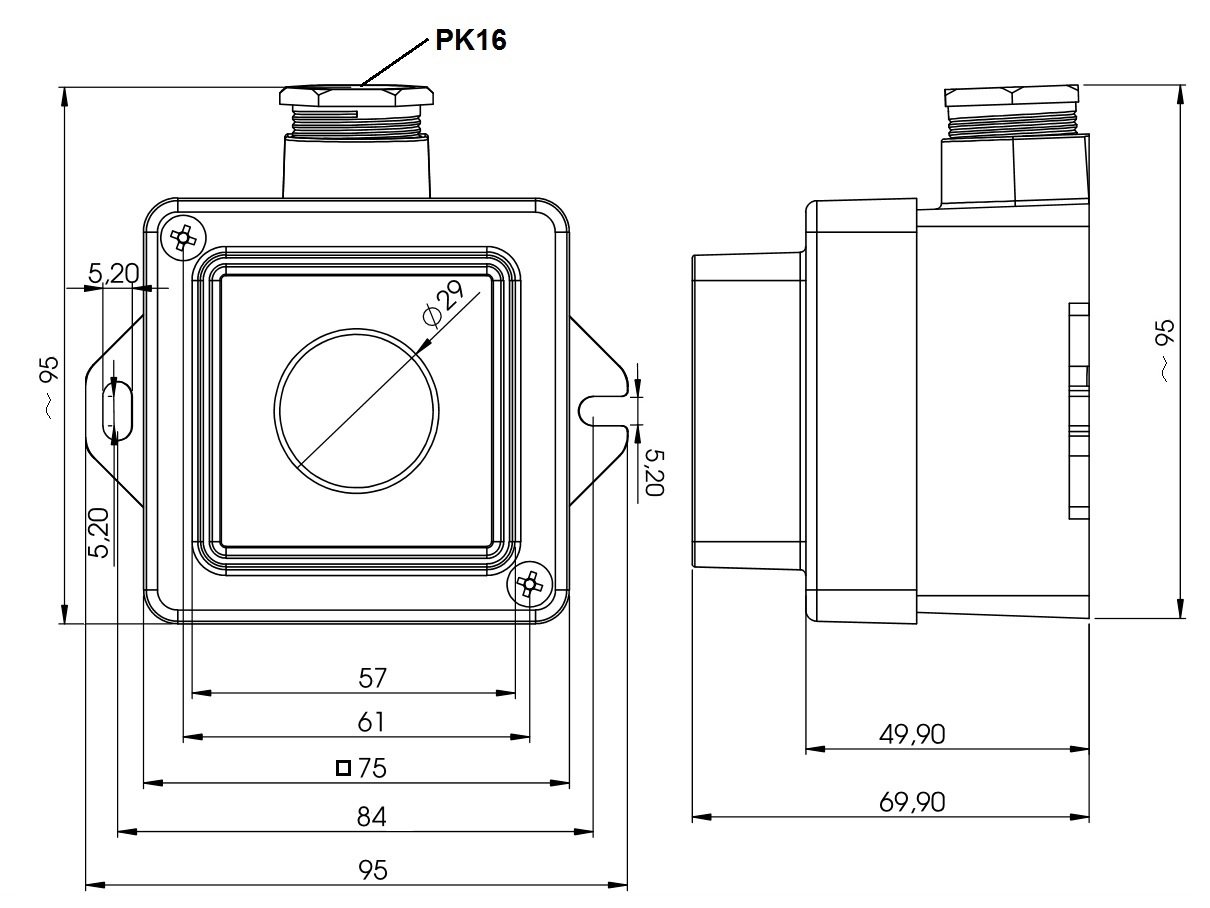

- 75×75×61/70 mm (W×D×H)

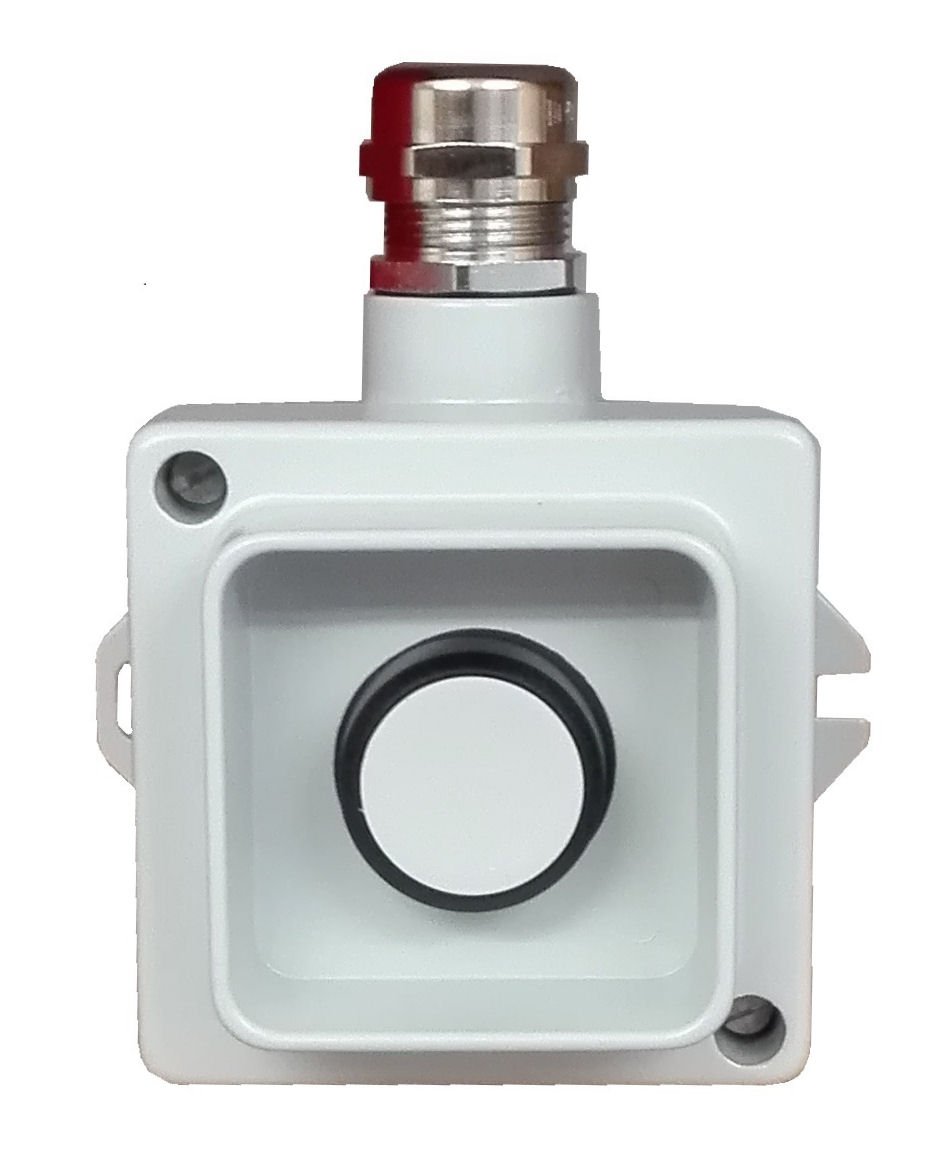

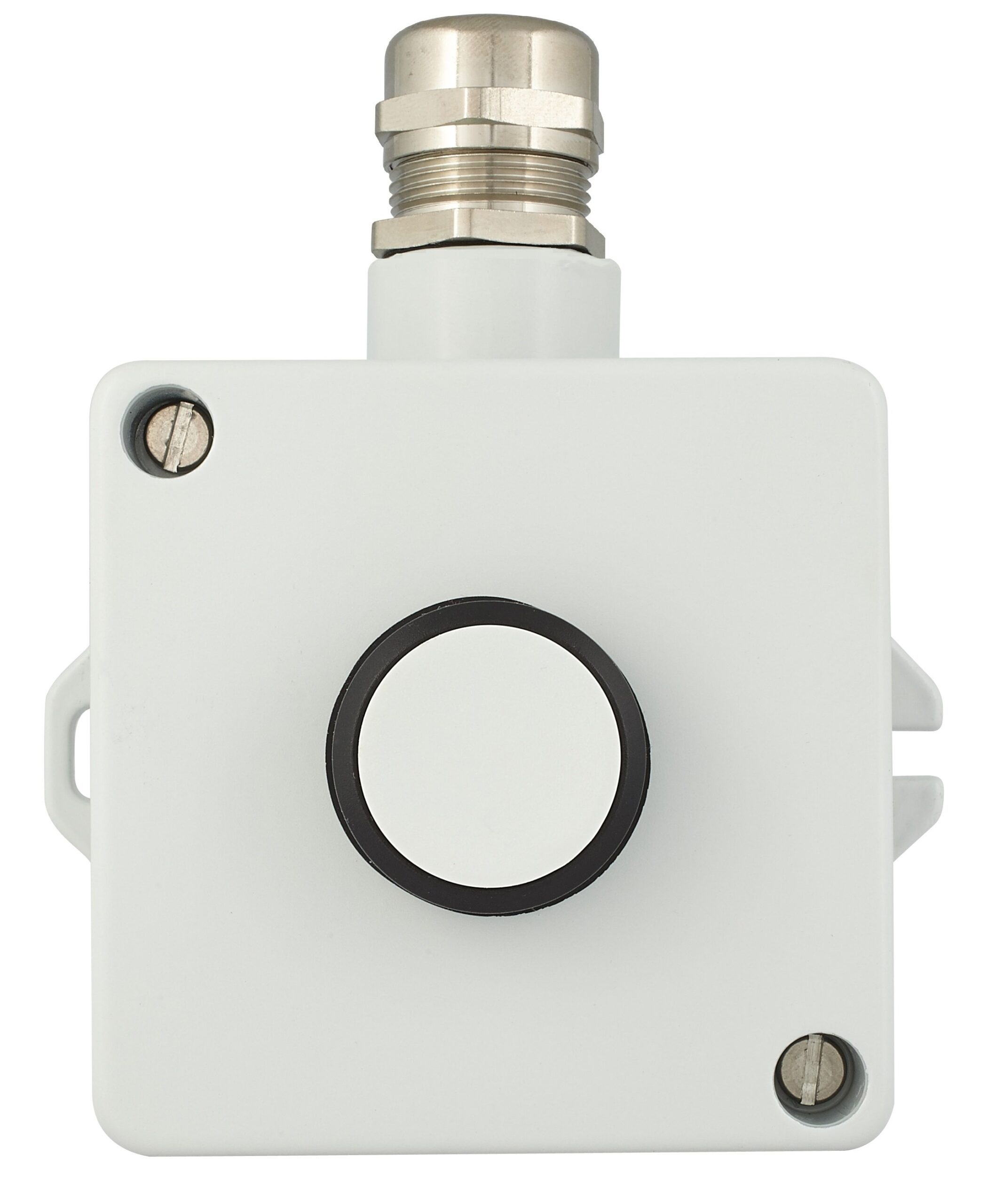

- Smooth cover or cover with protective frame; the frame protects against external impacts, IK08
- Pushbutton made of durable polycarbonate, excellent resistance to impacts and temperature variations
- With illumination: 220V AC/DC momentary; 24V AC/DC available on special order; NO (specify NC when ordering)
- PK16 cable gland, gasket Ø11 mm
- Wiring: min. 1×0.5 mm² and max. 2×1.5 mm², screw terminals
- The pushbutton is a sister product to the emergency stop button
- Heavy‑duty model available for very demanding environments such as oil or commercial kitchens
- IEC/EN 60947‑1, IEC 60947‑5‑1
