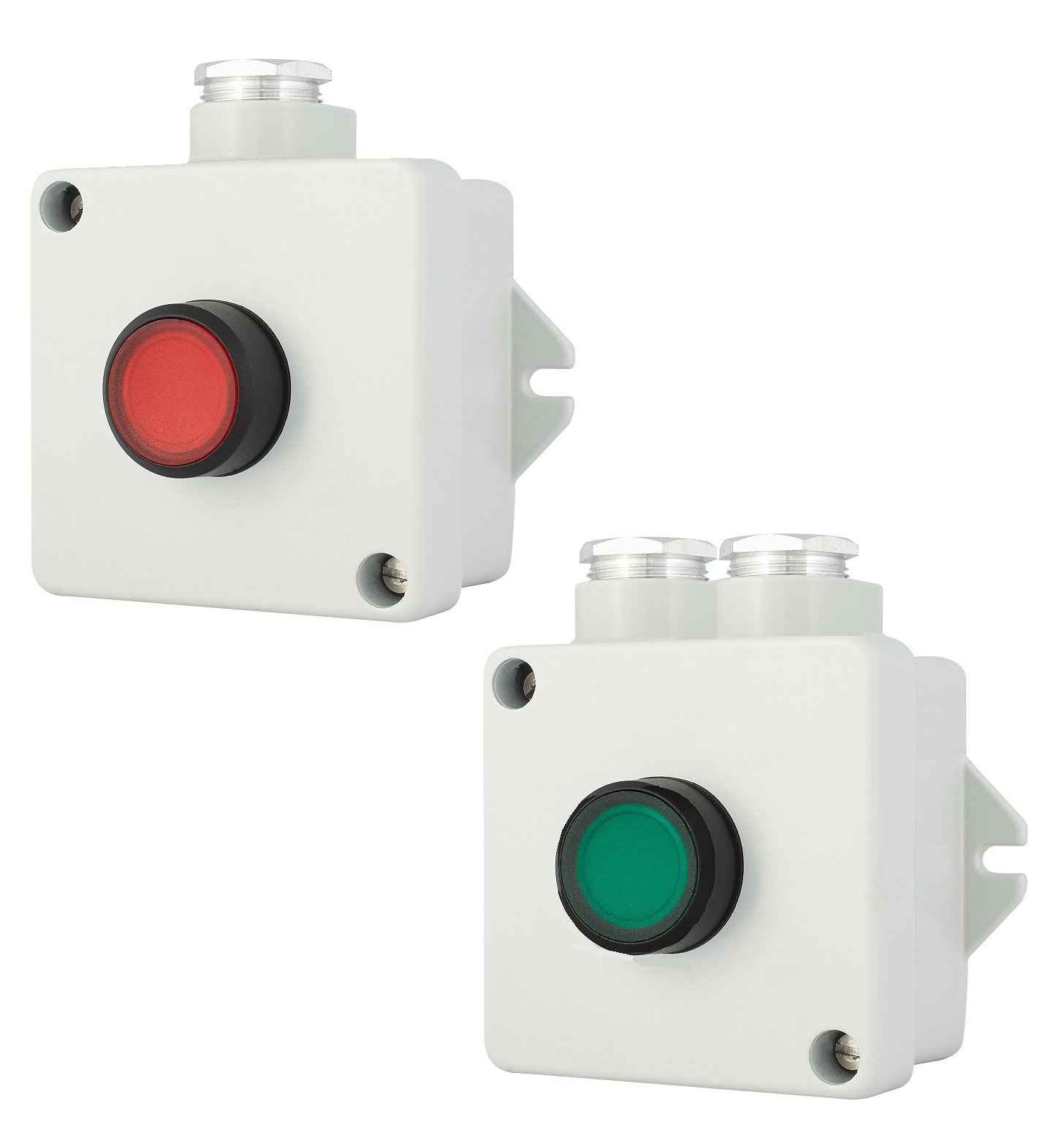

PUSHBUTTON ILLUMINATED 220V AC/DC IP67 NO, NEW!

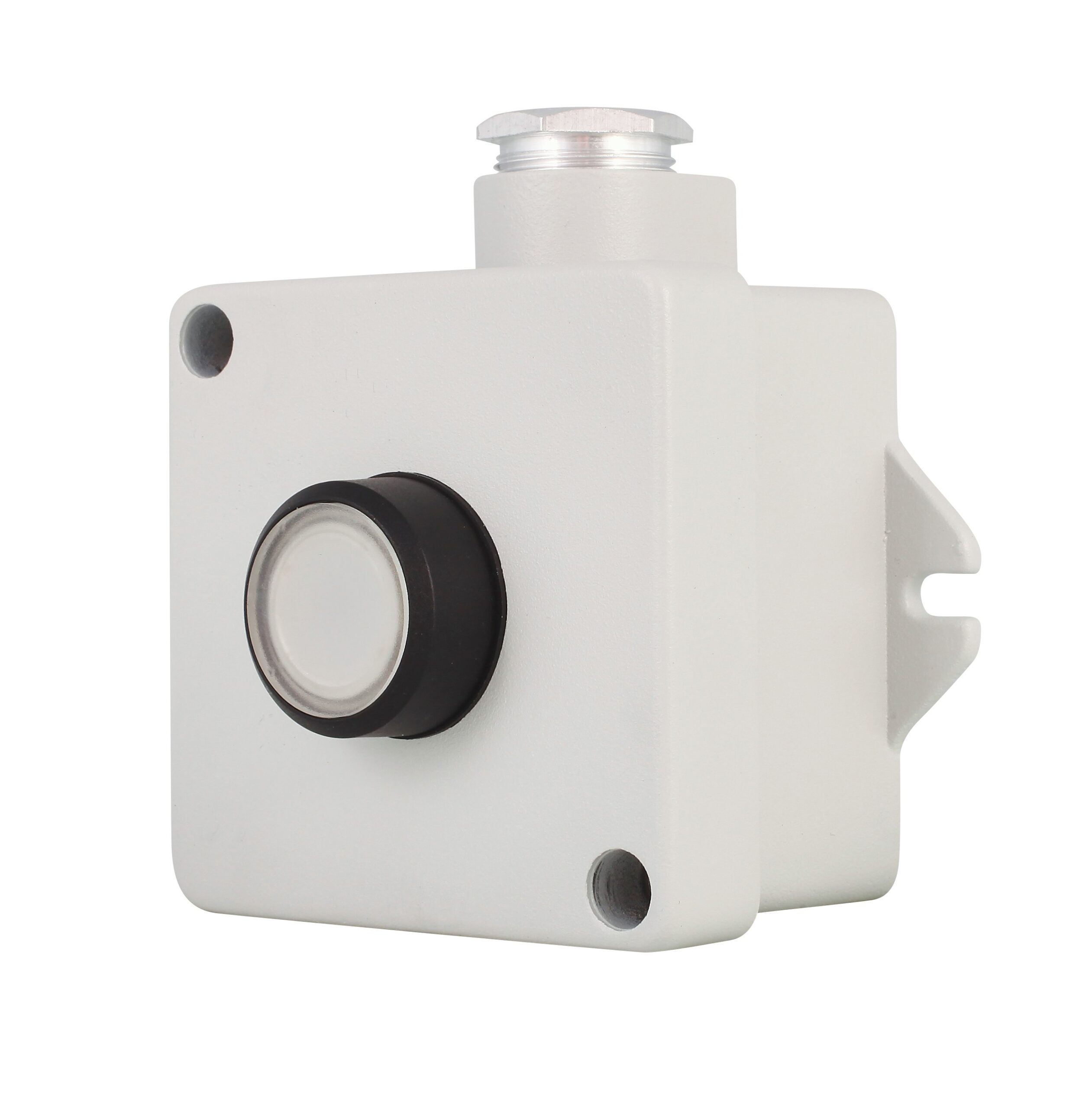

RED or GREEN light, other colors by special order, e.g. clear.
Pushbutton function is NO(normally open) (NC normally closed, only as RED), 24V AC/DC NO or (NC as red) also as special order.
Metallic cable glands PG 16, cable Ø 11mm. Acid-resitantcover screws. Good suitable outside and in marine enviroment.
Screw connectors. Box RAL7035.
Product information:
| – NO (normally open) (NC normally closed available as red) |
| – 220V AC/DC |
| – Red or Green light as standard, mention if You want it in other colors |
| – 24V AC/DC NO or NC as special order, red version |
| – Momentary, Maintained as specialorder |
| – Box color RAL7035 |
| – 75x75x61/70 (size) |

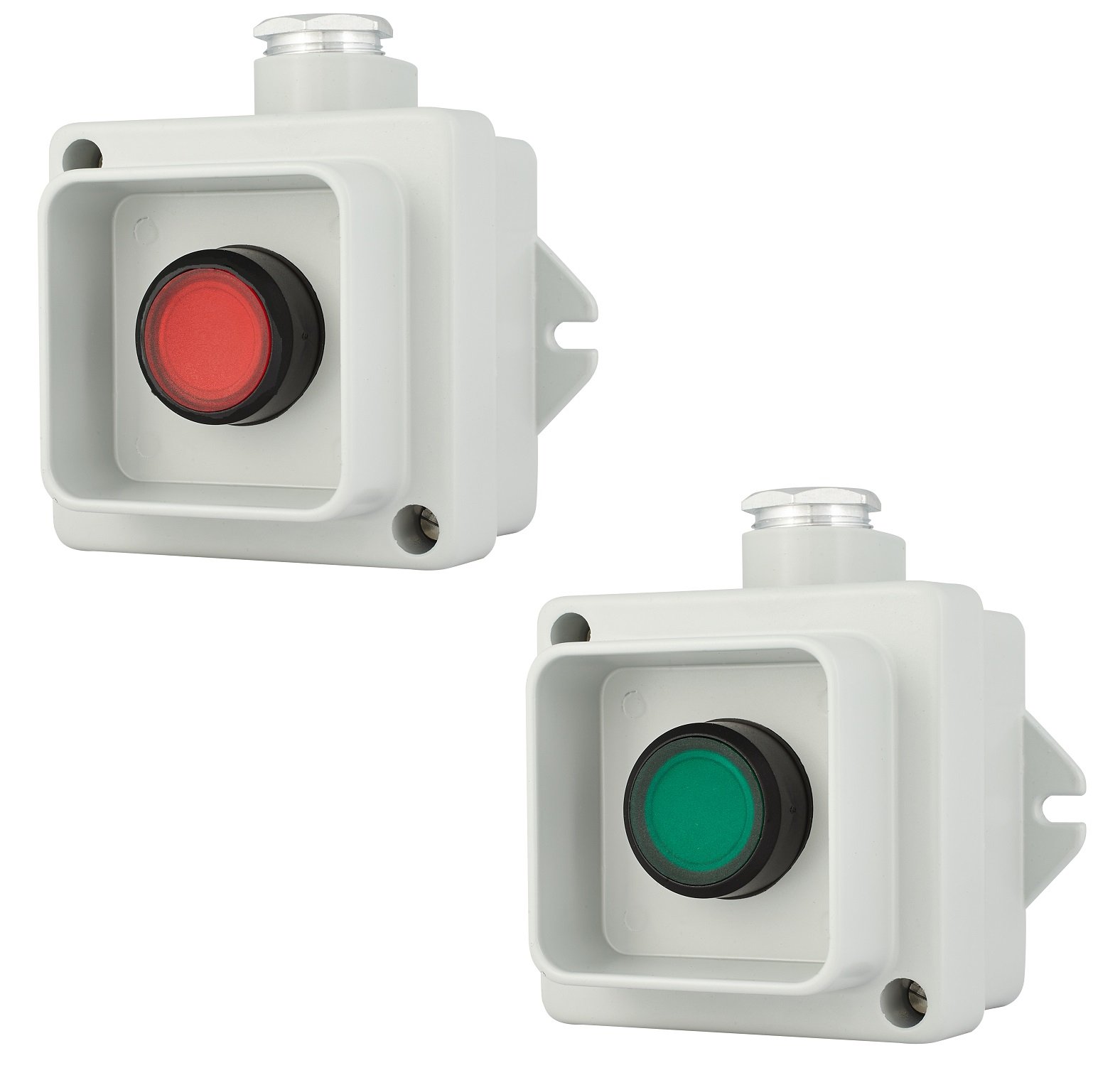

| – Flat cover or cover with shieldframe. IK08 |
| – Pushbutton polycarbonate |
| – PG16 cablegland, seal Ø11 mm |
| – Connection, min. 1×0,5mm² ja max. 2×1,5mm² |
| – Pushbutton are similar to the Emergency push-button |
| – Box also available in other RAL-colors
– IEC/EN 60947-1, IEC 60947-5-1 |
The RAL-7035 color series products meet the highest UV protection and corrosion requirements. All 7035 products are with acid-resistant cover screws and oil-resistant gaskets.
