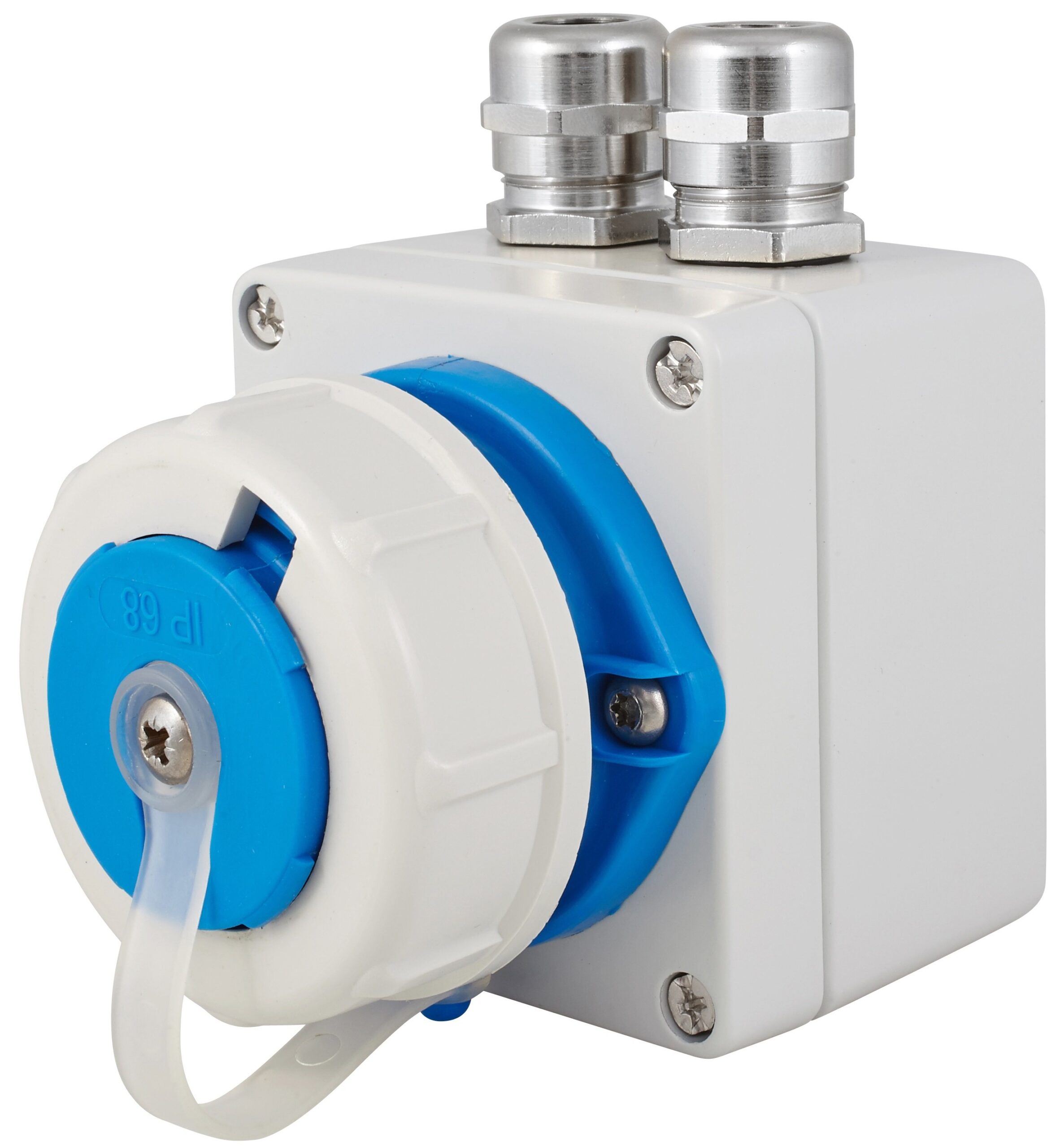

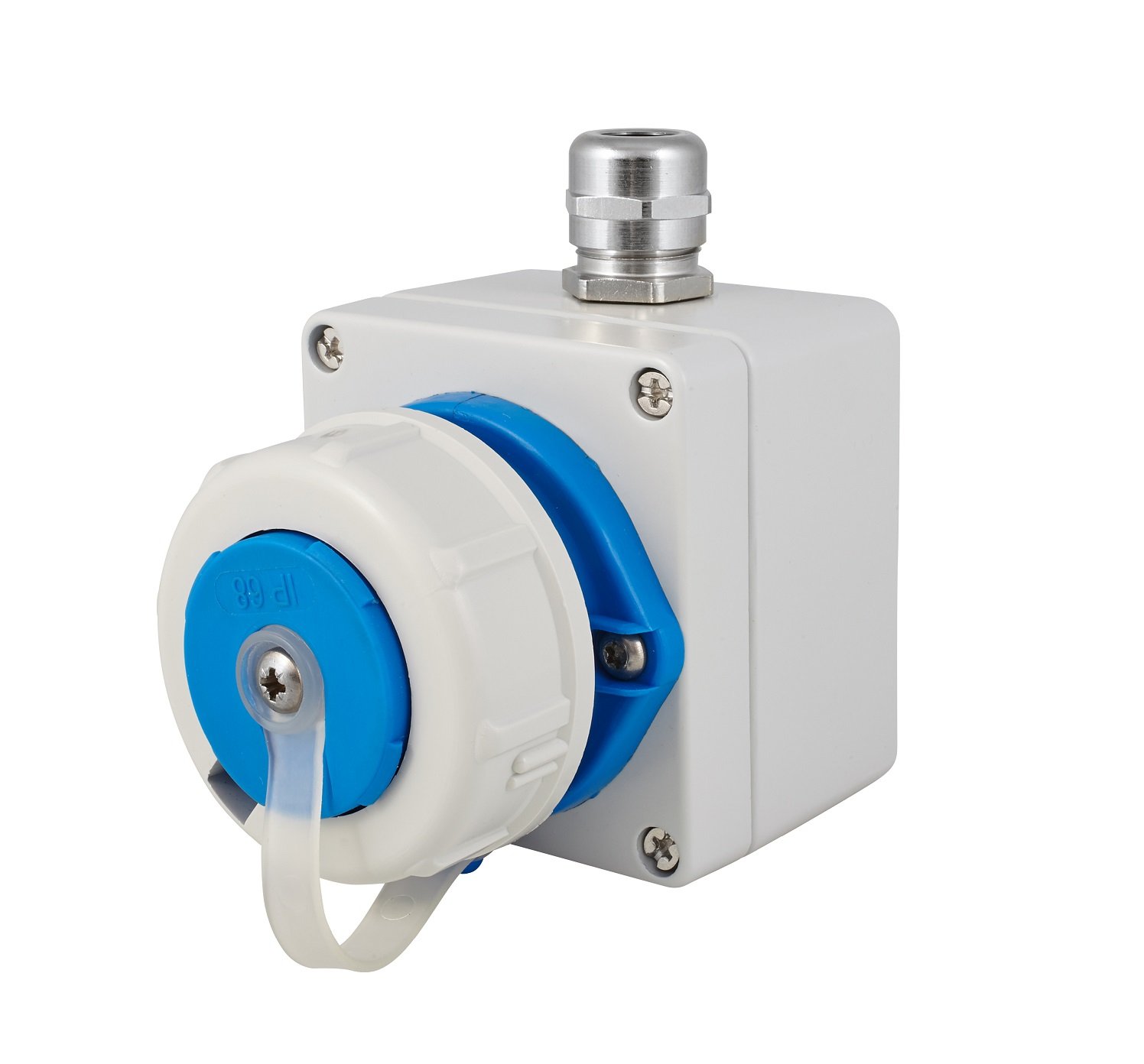

Socket Outlet for extremely tough installations. IP68, weather and water proof.
Box IK09, passivated aluminium enclosure (chromated).
Acid-resistant screws. Socket: 230VAC/16A 2p+E, hammer proof, robust.
Varying penetrations possible, M20/M25, Nickel plated brass cable gland.
– M20 6-12 mm cables / M25 11-17 mm cables
| Color | Model | Fastening | Order no | Marine model | Cable Ø mm | Description | Weight | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| RAL-7035 | SCHUKO IP68 /1 |   | 2401801 | Yes | M20 6-12 | 230VAC/16A | N/A | ||
| RAL-7035 | SCHUKO IP68 /2 |  | 2401802 | Yes | M20 6-12 | 230VAC/16A | N/A | ||
| RAL-7035 | SCHUKO IP68 /9 |   | 2401803 | Yes | M20 6-12 | 230VAC/16A | N/A | ||

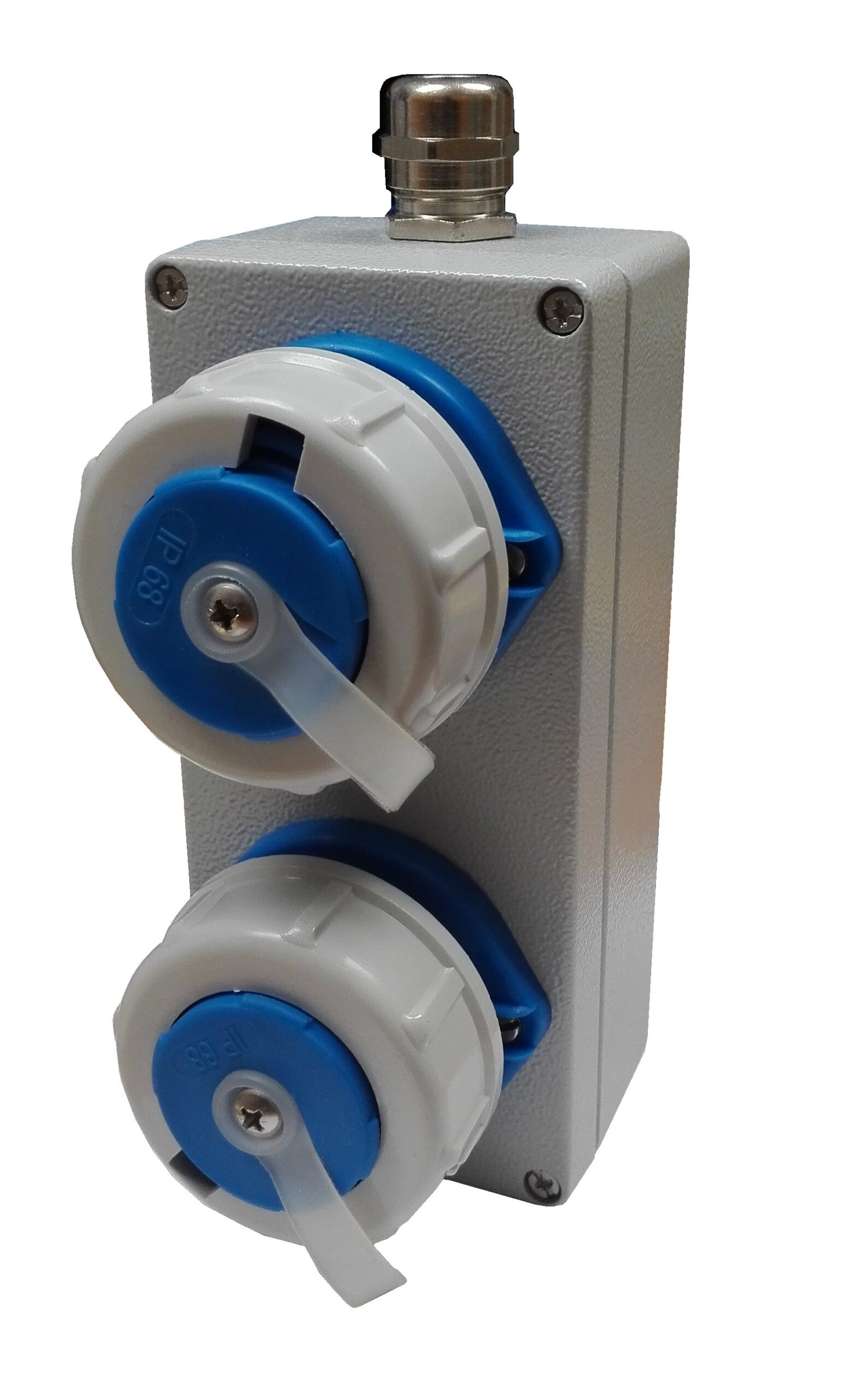

| RAL-7035 | KAKSOIS-SCHUKO IP68 | | 24 019 01 | Yes | M20 6-12 | 230 3p 2P+PE) | N/A | ||

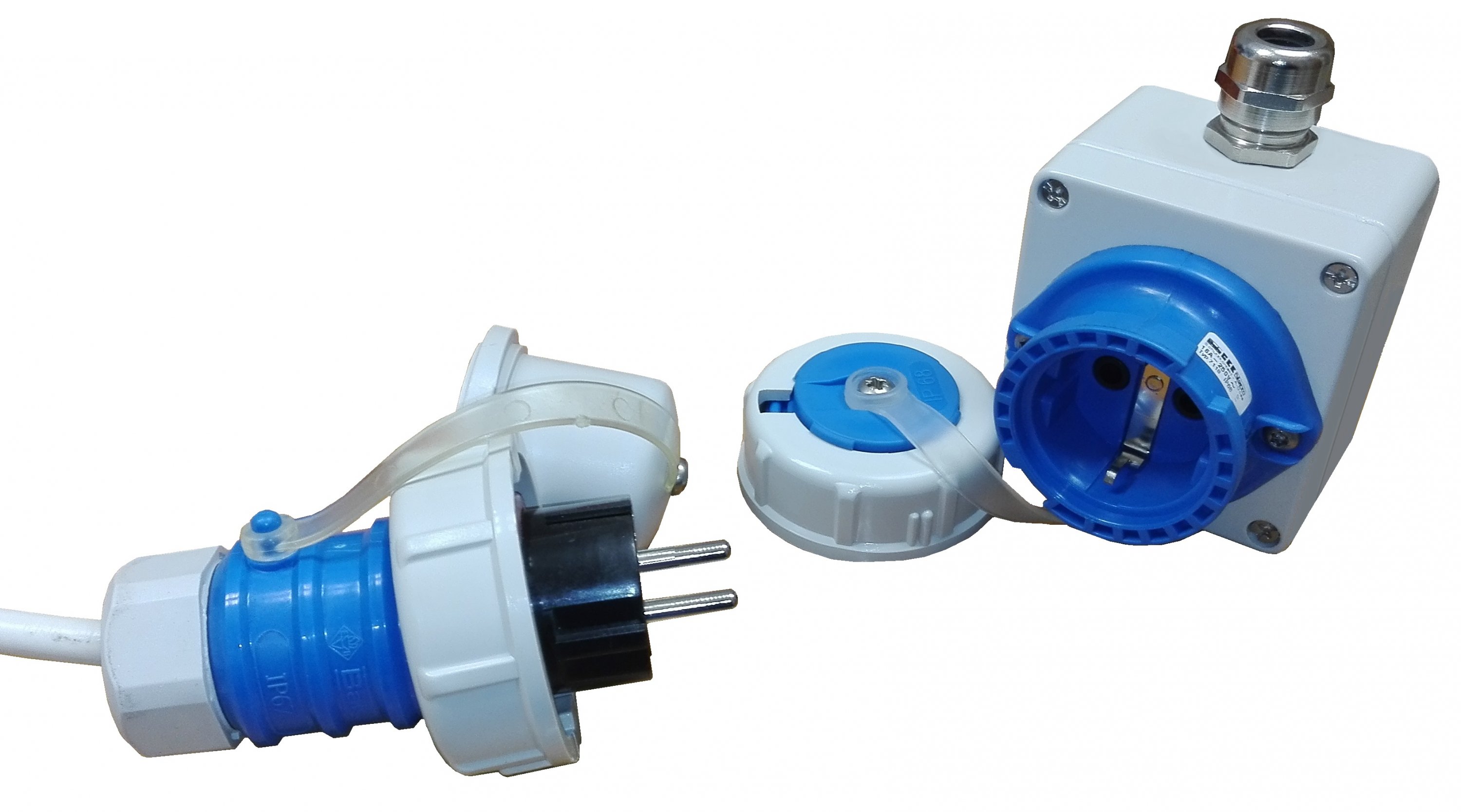

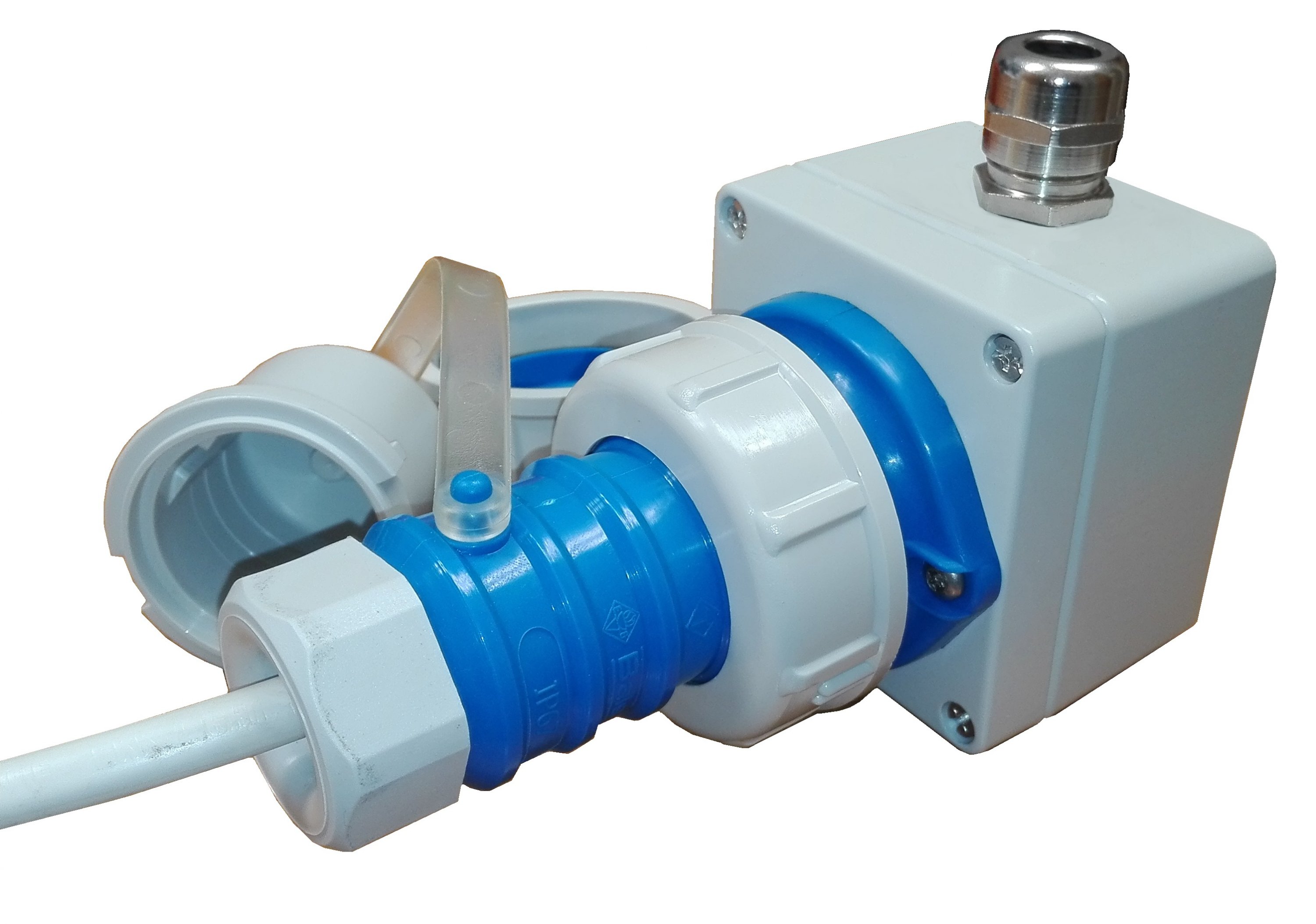

| H925001 | Socket Plug IP67 | 2449010 | 7-19 | N/A |
